8 Operation
8.1 Starting and stopping
Pictograms on the instrument panel illustrate the starting and stopping procedures, see also item 1
in the following illustration.
Precondition No personnel are working on the machine.

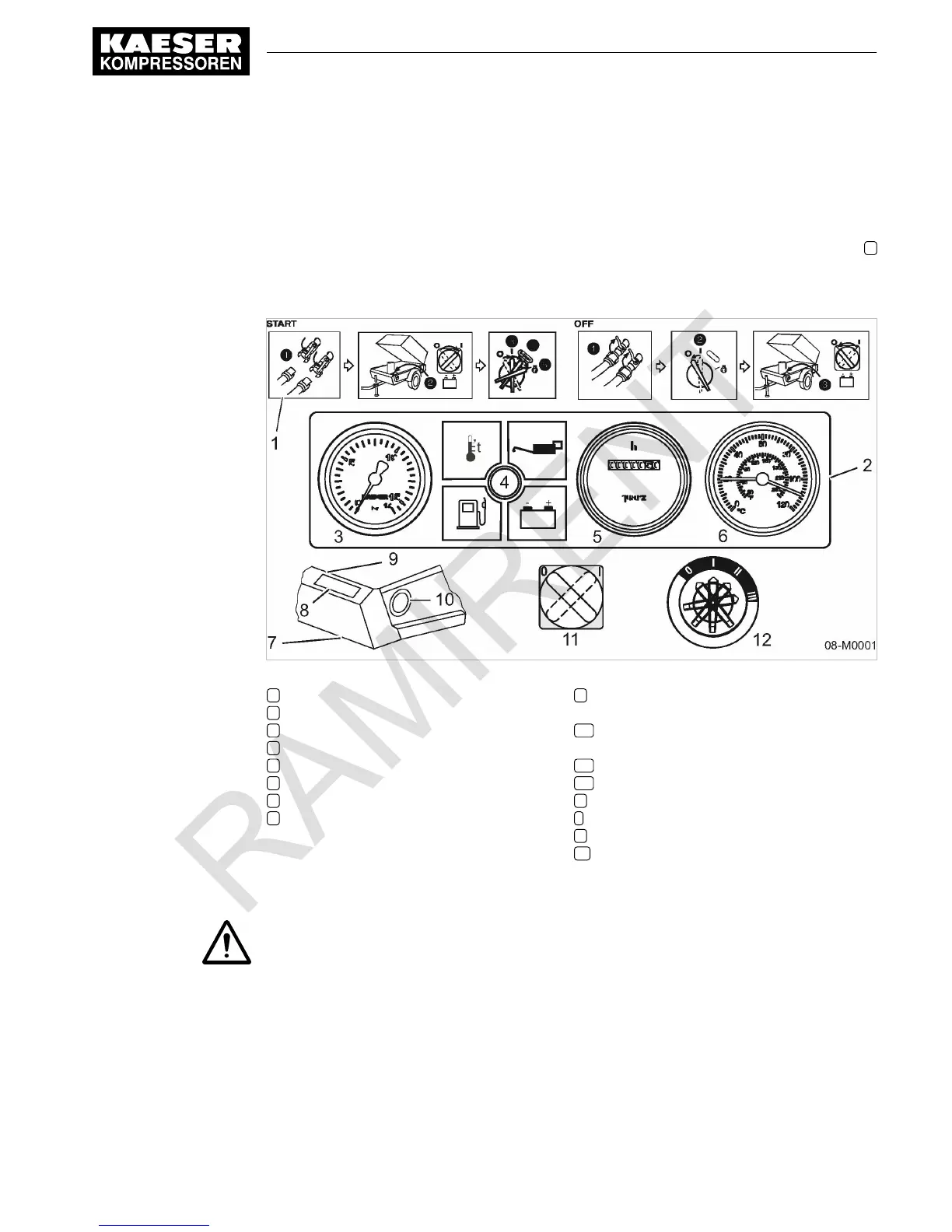

Fig. 17 Starting instruments
1 Starting and stopping pictogram
2 Instrument panel
3 Compressed air outlet pressure gauge
4 Alternator indicator, group alarm lamp
5 Operating hours counter
6 Temperature gauge switch
7 Bodywork
8 Location of the instrument panel
9 Location of the «controller ON» switch
(within the machine)
10 Location of the «starter switch» on the ma‐
chine
11 «Controller ON» switch
12 «Starter switch»
0 STOP / OFF
I ON
II Preheating
III Start
8.1.1 Starting
1. CAUTION!
Serious damage to engine from cold starting sprays.
Cold-start assists, such as ether or other sprays, can cause severe engine damage.
➤
Do not use cold start sprays.
8 Operation
8.1 Starting and stopping
