KCI ActiV.A.C. - Clinician Mode; Clinician Mode Home Screen; Common Screen Control Buttons

®
A
c
t
I
On/Off
Therapy
Utilities
Clinician Mode
Jun 22 2006
15:38
Continuous
0 mmHg
Therapy Off

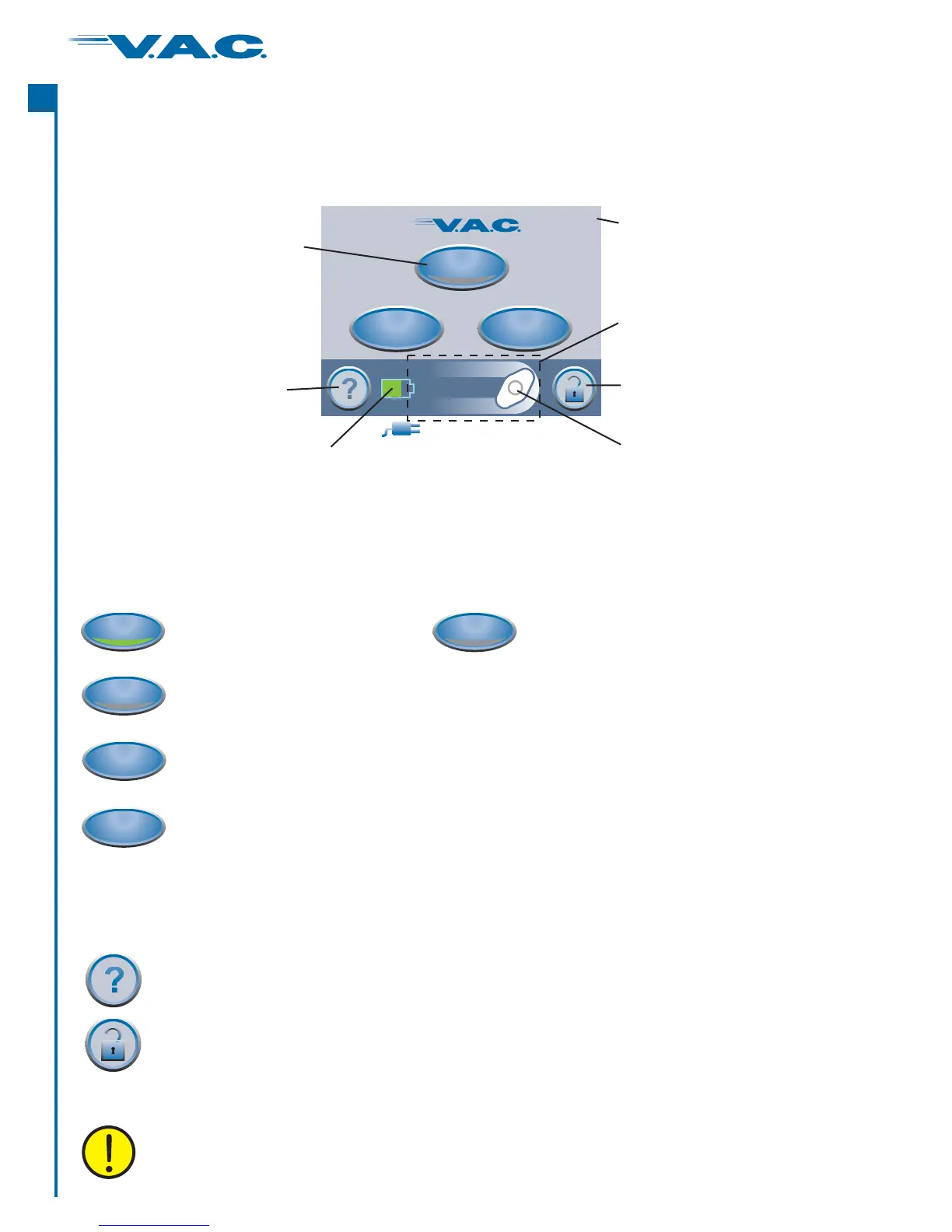

Clinician Mode Home screen
Clinician Mode
Therapy On/Off
Button
Help Button
Screen Guard
This “plug” indicator
while plugged
into .
appears
a wall outlet
Battery Level Indicator
This icon rotates when the
ActiV.A.C. Therapy Unit is
applying negative pressure.
®
Therapy Status
Bar and Display
Area.
Mode Indicator
Current Date
Current Time
Screen Guard is not a patient lock-out feature.
Common Screen Control Buttons
accesses screens when available.Help
activates the feature .Screen Guard to help prevent unintentional changes This
feature should be used when cleaning the Touch Screen User Interface.
To release Screen Guard, press ‘1’ and then ‘2’.
On/Off
starts or stops V.A.C. Therapy.
®
Most screens have one or more common control buttons. These are:
Utilities
accesses ‘Region Settings’ and ‘Time/Date’ , ‘Screen
Brightness’ and ‘AC Light’ buttons.
access buttons
Therapy
accesses ‘Settings’, ‘Seal Check™’ Tool, ‘Settings Guide’, and ‘History’ access
buttons.
A green lighted crescent
means the function is on.
An unlit crescent
means the function is off.
22
®
