General description
Karl E. Brinkmann GmbH
25
Expandability configurations
The C6 ECON systems are config
ured in the factory with two differ-
ent types of expansion:
•
without internal PCI slot

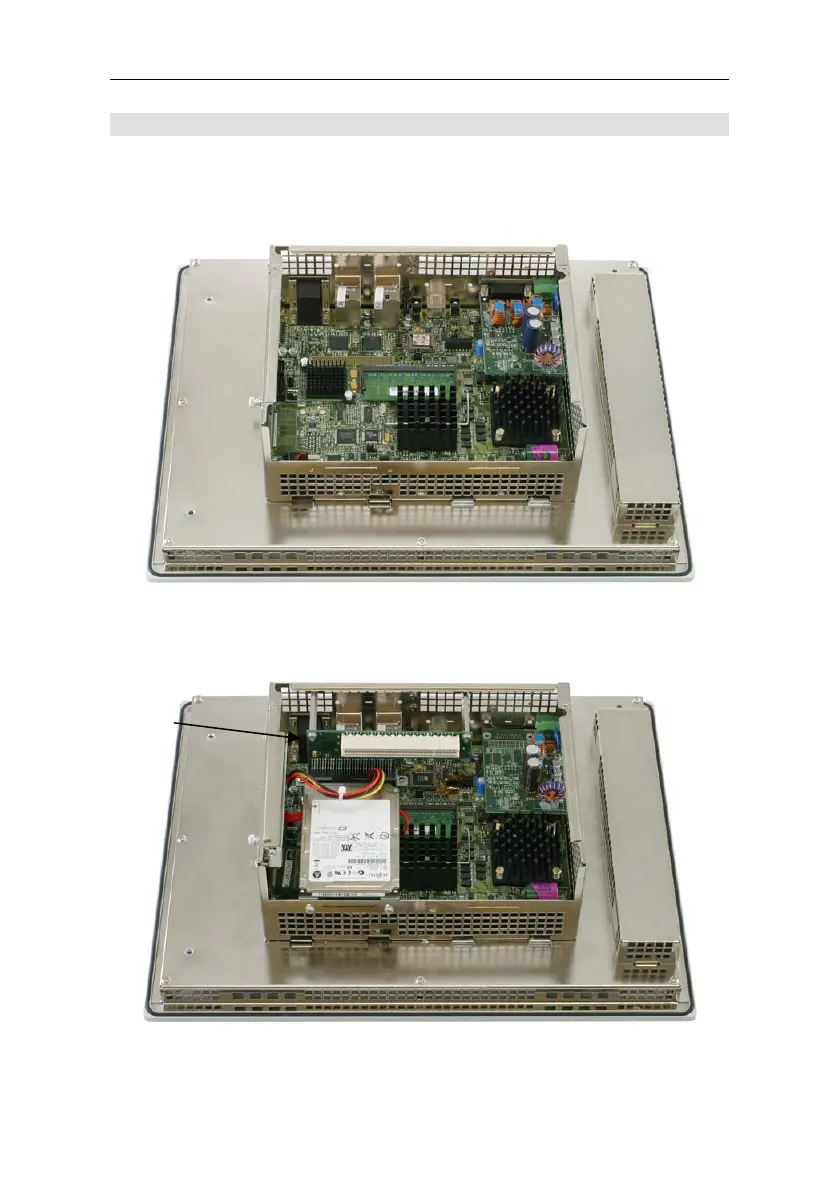

detail of inside of C6 ECON without PCI slot
•
with internal PCI slot
detail of inside of C6 ECON with PCI slot
(the PC cell is equipped with a tachometric fan with filter)
Internal
PCI slot
24
26
