Hard disk
The system may optionally house an internal 2.5" hard disk.

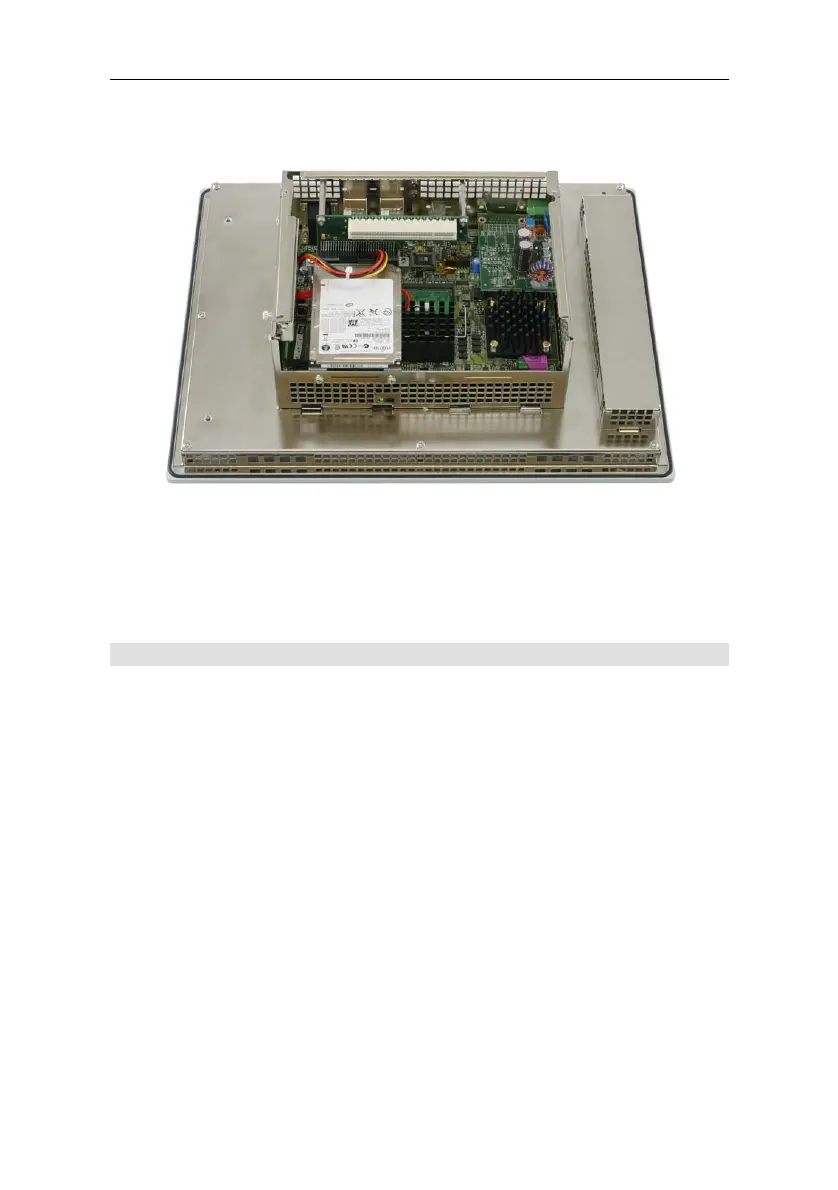

Detail of positioning of hard disk
The hard disk is to be connected by a 44-pole flat cable, which must
be inserted in the J8 connector of the CPU 951, which can be ac-
cessed by removing the rear cover.
Touchscreen
Setup of Touchscreen controller
The 5-wire re
sistive touchscreen is managed by a dedicated control-
ler that the system sees as a fourth serial port.
The enabling/disabling of the port, the I/O address and its IRQ must
be selected in the screen Special OEM Features of the Setup.
These parameters are read automatically by the Plug & Play operat-
ing systems (Windows 95, 98, Mw, 2000, XP) which will create a
COM port associated with the device.
It is advisable to set the touchscreen to the address I/O 2E8h, with
IRQ 5. You will obtain a port with the address of the COM 4 standard
and a non-shared interrupt with other standard serial ports.
Using Windows NT4.0 (which is not a Plug & Play operating system),
the COM port must be created manually. From the control panel, add
a new port, assigning the I/O addresses and the IRQ previously es-
tablished in the Setup.
