General description
Karl E. Brinkmann GmbH 29
Ambient
Operating
temperature
+0° ÷ +50°C
Electromagnetic
compatibility
Emissions: Standard EN 55022, Class: B
Immunity: Standard EN 55082, Ambient: industrial
Pinout Connector DB15 male
Pinout Connector DB15 male
PIN signal
1 / 2 / 9 Mains power supply - power
7 / 8 / 15 Ground – power
6 / 13 / 14 Backup power supply – power
4 Smbus data line - signal
5 Smbus clock line - signal
10 Smbus – signal
12 Smbus power supply – signal
3 PSON line for UPS activation - signal
11 N.C.
Installation and connection of UPS module
To install the UPS module, the system must be equipped with the
appropriate connector.
Disconnect the system from the power supply (if connected).

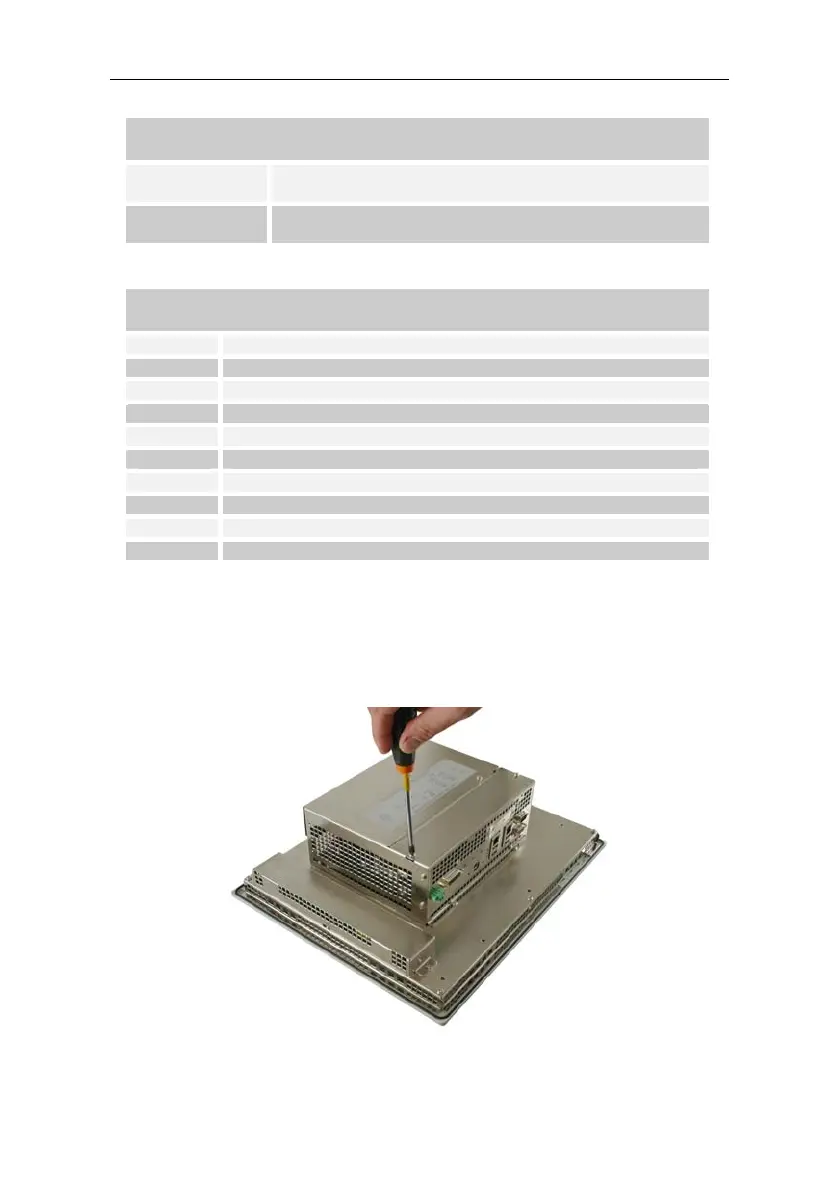

Remove the two screws from the lower part of the rear cover.
(sequence 1 of 7)
