User's manual – C6 ECON
96 Karl E. Brinkmann GmbH

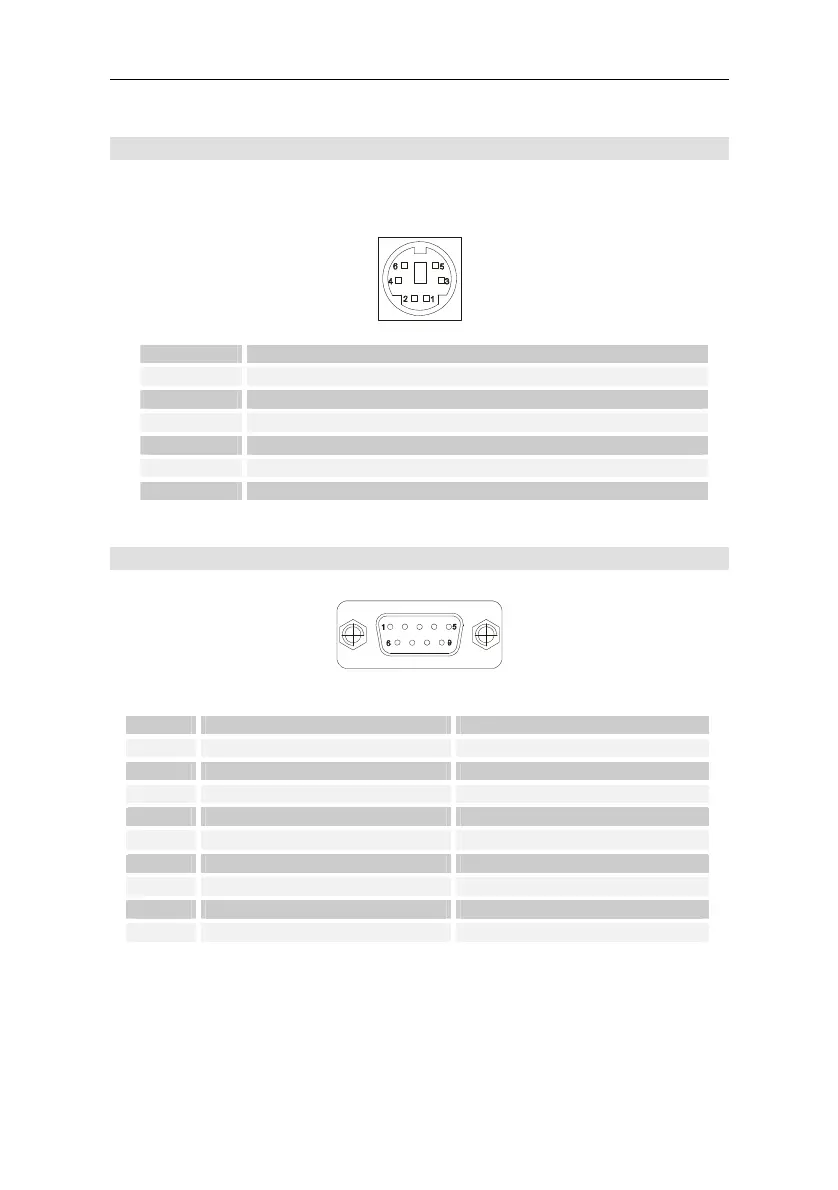

Connector for keyboard/mouse PS/2
The PS/2 keyboard / mouse connector is a female mini-din connec-
tor.
PIN SIGNAL
1 Keyboard Data
2 Mouse data
3 Ground
4 Power Supply (+ 5 V)
5 Keyboard Clock
6 Mouse Clock
Serial interface connector DB9 RS232
PIN SIGNAL I/O
1 Carrier Detect INPUT
2 Receive Data INPUT
3 Transmit Data OUTPUT
4 Data Terminal Ready OUTPUT
5 Gnd (Mass)
⎯⎯
6 Data Set Ready INPUT
7 Request To Send OUTPUT
8 Clear To Send INPUT
9 Ring Indicator INPUT
