Installation
Karl E. Brinkmann GmbH 61
Panel assembly
The systems may be panel mounted as follows:
Pre-work the housing panel (maximum thickness 4 mm). Comply
with the measurements shown in the chapter on dimensions
and drilling template.
Insert the system (with no external connection) in the opening.
Insert the fastening hooks provided in the proper places provided
on the body of the machine.
Carefully tighten the screws of the fastening hooks so that the
front panel of the monitor is secured against the fastening panel.

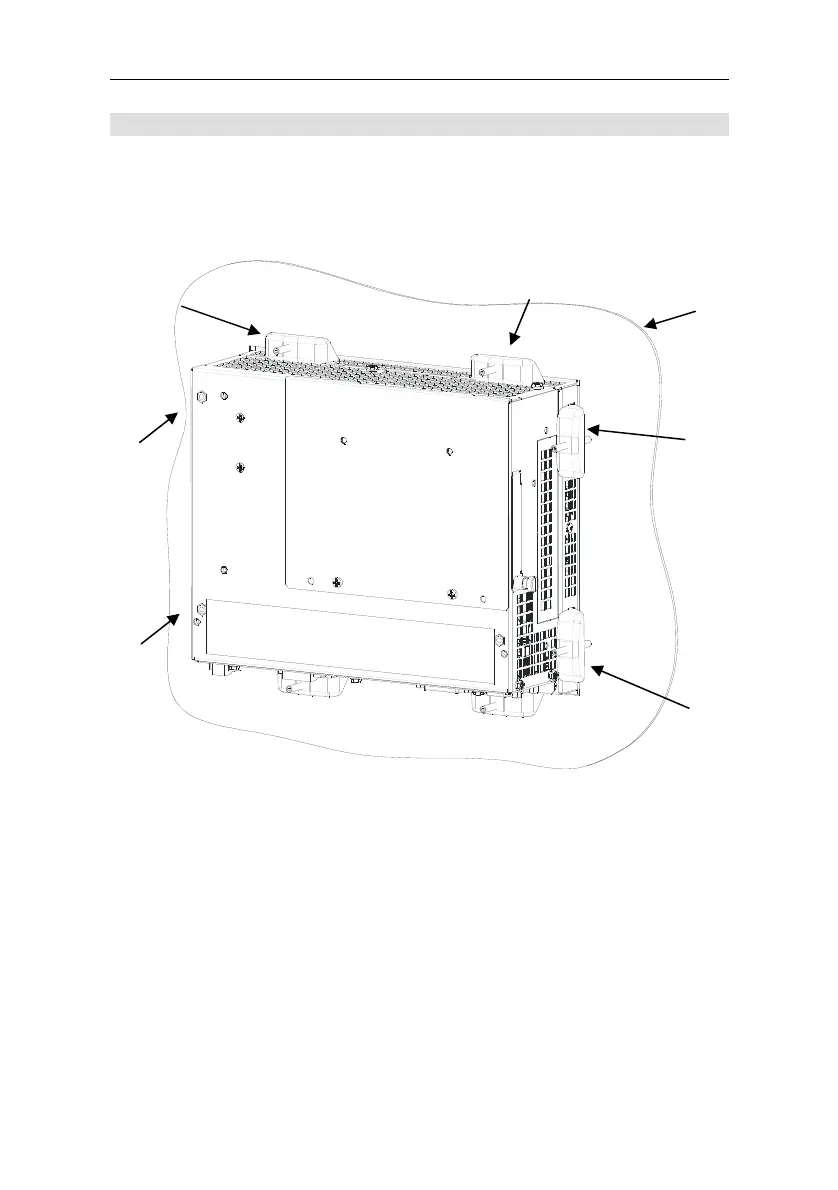

Housing panel
Hook with
fastening
screw
Hook with
fastening
screw
Hook with
fastening
screw
Hook with
fastening screw
Hook with
fastening
screw
Hook with
fastening
screw
