User's manual – C6 ECON
62 Karl E. Brinkmann GmbH
C6 ECON wall mounting

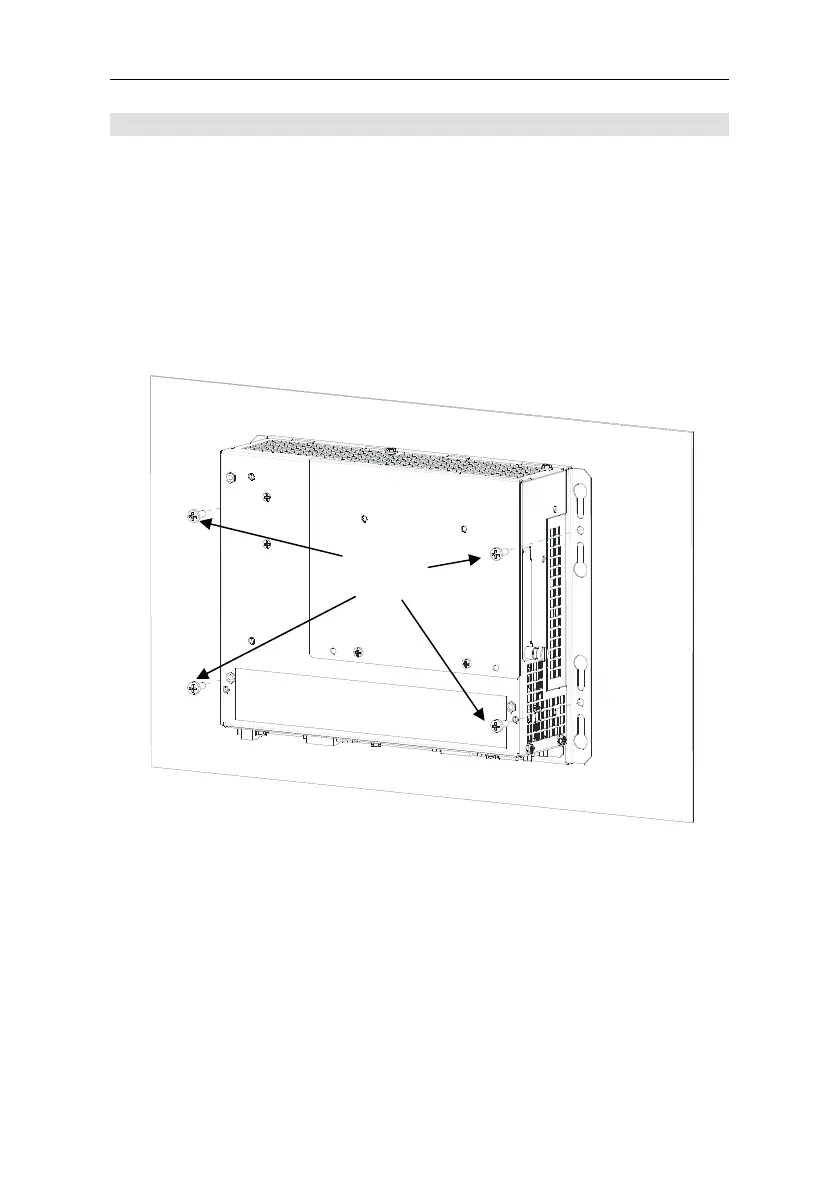

The systems may be panel mounted as follows:
• Pre-work the housing panel. Comply with the measurements
shown in chapter on dimensions and drilling template.
There are 8 fastening points. Fastening may be means of pins,
M4x20 (minimum), welded to the enclosure door, or with stainless
steel screws, M4x20 (minimum) and nut, M4 also in stainless steel,
and possible rosette and locking nut.
Fastening
pins
