User's manual – C6 ECON
98
Karl E. Brinkmann GmbH

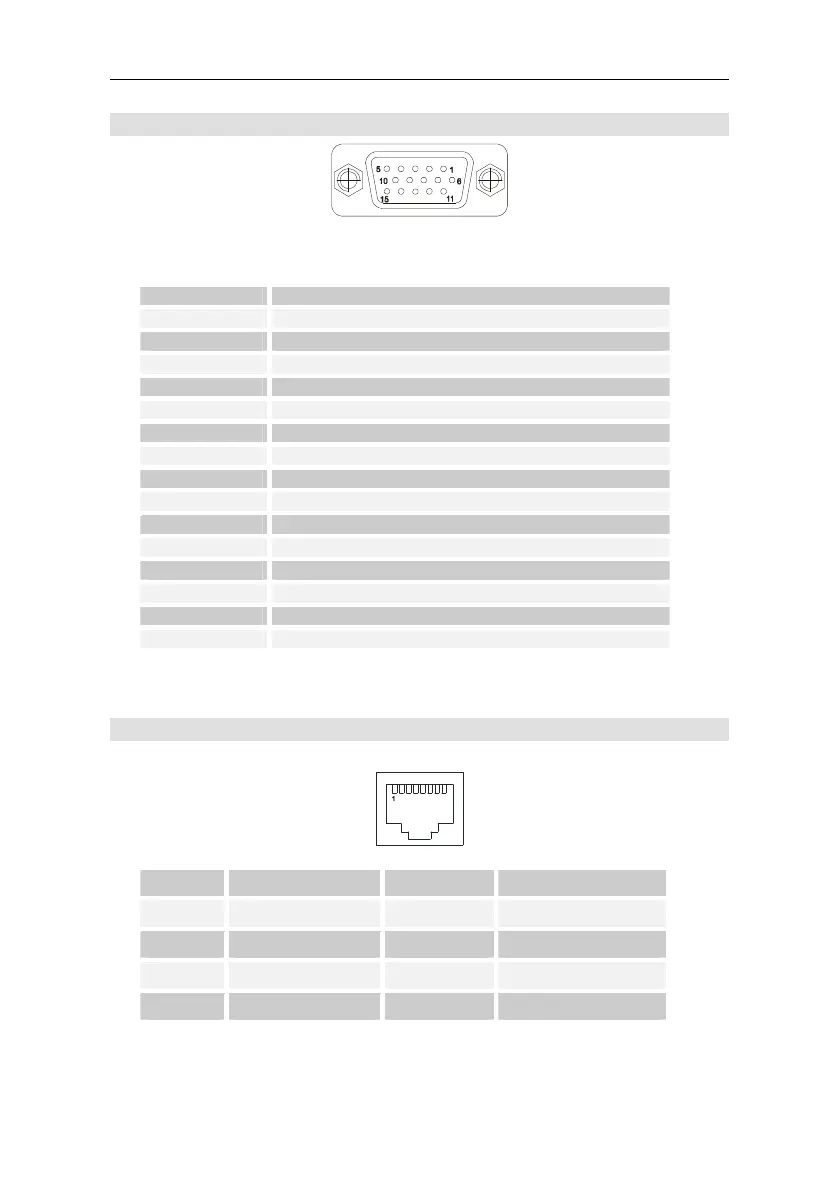

VGA connector
The VGA connector is a 15 pin high-den
sity female connector.
PIN
FUNCTION
1
Red
2
Green
3
Blue
4
N.C.
5
GND (Synchronisms)
6
GND (Red)
7
GND (Green)
8
GND (Blue)
9
5V
10
GND (Synchronisms)
11
Reserved
12
SDA
13
Horizontal synchronism
14
Vertical synchronism
15
SCL
RJ45 ETHERNET connector
PIN
Signal
PIN
Signal
1
TX+
5
Shield
2
TX-
6
RX-
3
RX+
7
Shield
4
Shield
8
Shield
97
99
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Preliminary Operations
5
List of Material Provided
6
Prior to Installation
6
Notes on the Guarantee
6
Chapter 2 General Description
7
Presentation
8
General Technical Specifications
8
Composition and Configuration of the Systems
11
C6 Econ 8.4
11
C6 Econ 10.4
11
C6 Econ 12.1
11
C6 Econ 15.0
12
C6 Econ 17.0
12
Front Panel
13
Customization of the Function Keys
14
Removal/Insertion of the Membranes of the Function Keys
15
Display
18
Display Quality TFT-LCD
18
8.4" Display Features
19
10.4" LVDS Display Features
20
12.1" Display Features
21
15.0"Display Features
22
17.0"Display Features
23
Rear Panel Connectors
24
Expandability Configurations
25
UPS (Optional)
26
Technical Data
28
Installation and Connection of UPS Module
29
Software Installation
33
Driver Linx Module Installation
33
Installation of Driver UPS in Windows Environment
36
Calibration
38
Summary of Operating Phases
39
Deactivation and Removal of UPS Module
41
Battery Replacement
43
Cooling
48
Procedure for Cleaning Fan Filter
50
System Grounding
52
Power Supply
54
Mass Memory Unit
55
Compact Flash
55
Hard Disk
56
Touchscreen
56
Setup of Touchscreen Controller
56
Installation of Software in Various Windows Environments
57
Installation of Software in MS-DOS Environment
57
Chapter 3 Installation
59
How to Start the System
60
Start-Up
60
Shutdown
60
Panel Assembly
61
C6 ECON Wall Mounting
62
Access to Internal Parts
63
Removal of the Rear Cover (Upper Part)
63
Removal of the Rear Cover (Lower Part)
65
Riser Card Removal
66
Removal of Hard Disk
68
Ram Installation/Removal
71
Adding an Add-On Card
72
Addition / Replacement of Compact Flash Modules
74
Chapter 4 Dimensions and Drilling Templates
77
Dimensions of System C6 ECON 8.4
78
Dimensions of System C6 ECON 10.4
81
Dimensions of System C6 ECON 12.1
84
Dimensions of System C6 ECON 15.0
87
Dimensions of System C6 ECON 17.0
90
Dimensions of System C6 ECON
93
Chapter 5 Connectors Pin-Out
95
Connector for Keyboard/Mouse PS/2
96
Serial Interface Connector DB9 RS232
96
Serial Interface Connector DB15 Multistandard
97
USB Connector Type a
97
VGA Connector
98
RJ45 ETHERNET Connector
98
