User's manual – C6 ECON
26 Karl E. Brinkmann GmbH
When the system is configured to mount an internal PCI add-on card
the PCI connector of the standard PC/104Plus is no longer
available:
UPS (optional)
The UPS module provides power to the system for a maximum of 15
minutes* if there is no external power supply at 24V
DC
.
It can be placed remotely with a special extension cord up to 1 m
from the central unit and it is equipped with configurable and auto-
matic management of the controlled shutdown operations. It can be
added in all versions of the C6 ECON systems

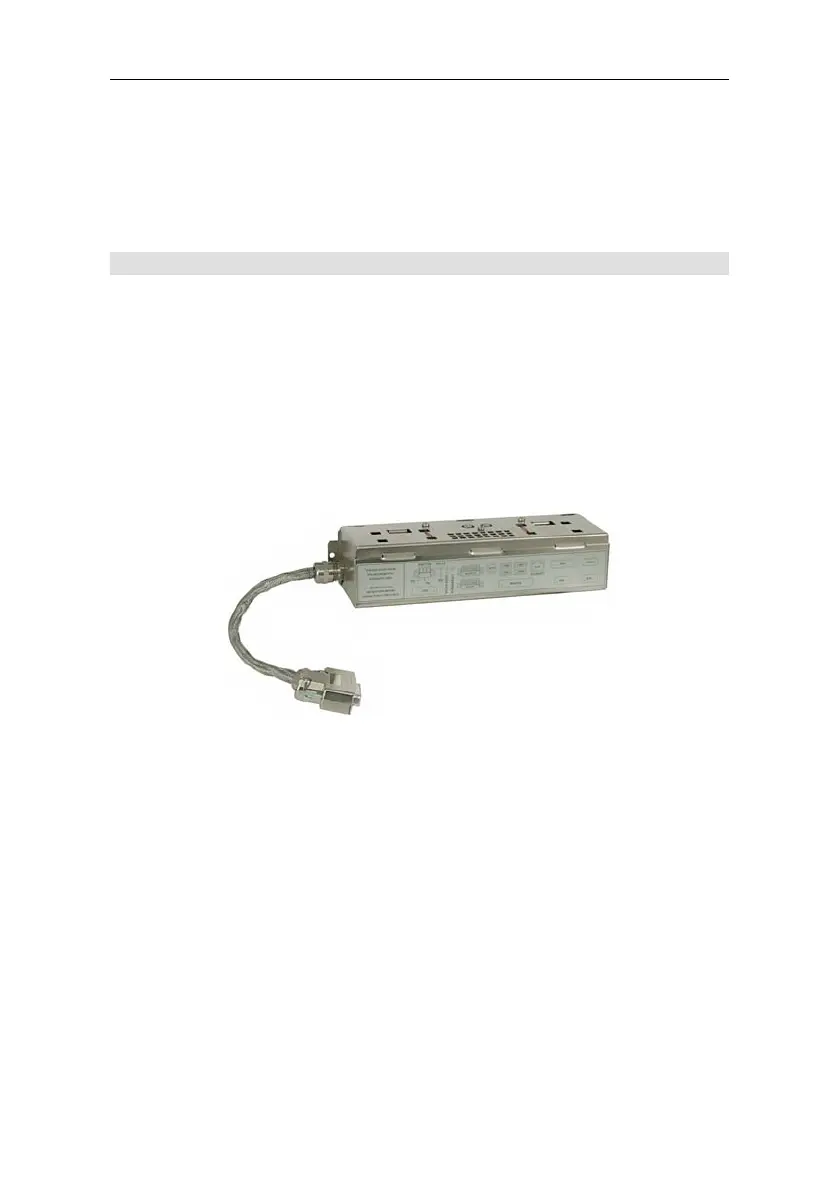

Detail of UPS module
*Backup time depends on machine configuration (type of display,
add-on modules, etc.) with fully charged batteries.
When there is a power outage, the UPS starts working. The two
green LED's on the front and rear panels of the system begin flash-
ing.
