User's manual – C6 ECON
52 Karl E. Brinkmann GmbH

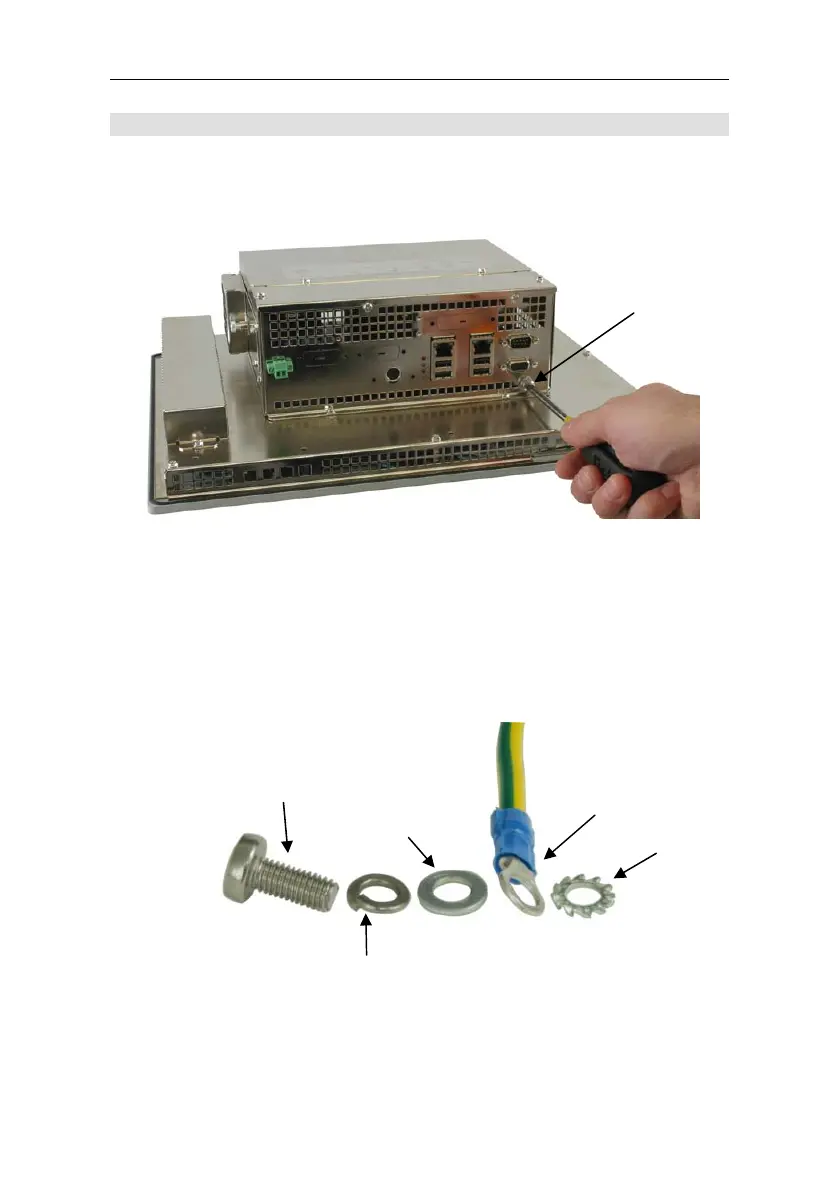

System grounding
It is absolutely necessary to connect the machine to the ground wire
by means of suitable wiring connected to the ground screw.
Remove the ground screw
(sequence 1 of 2)
Insert the wire end eyelet between the rosettes in the following
sequence:
1. Screw (M5x12)
2. Grover rosette
3. Flat rosette
4. Eyelet faston
5. Toothed rosette
Screw (M5x12)
Toothed rosette
Wire end eyelet
Flat rosette
Grover rosette
Earth screw
