User's manual – C6 ECON
30 Karl E. Brinkmann GmbH

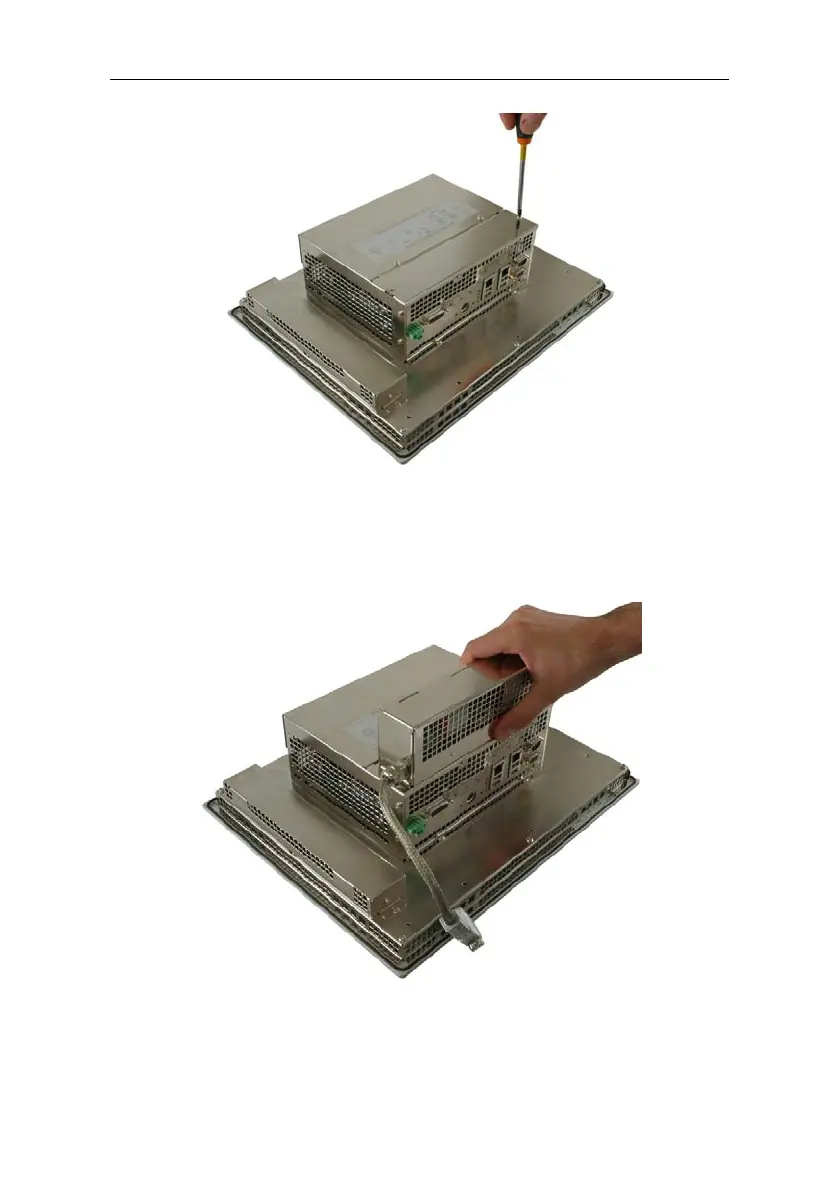

(sequence 2 of 7)
• Position the UPS module on the back of the system as shown in
the figure and connect the cable of the UPS to connector DB15
located on the system just below the power supply connector.
(sequence 3 of 7)
• Attach the UPS module to the system with the two screws.
