KEB combivert R6-S Applications Manual

Page3.7 - 10 COMBIVERT R6-S © KEB, 2008-02
Parameter sets
3.7.7 Locking of parameter sets
Parameter sets, which shall not be selected, can be locked with Fr.03. If one of the locked sets is selected, the
adjusted response in Pn.18isexecuted(default:setsourceerrorE.SEt).
Fr.03: Parameter set lock
Value Locked set Example (set 2 and 5 locked)
1 0 -
2 1 -
4 2 4
8 3 -
16 4 -
32 5 32
64 6 -
128 7 -
Sum:36
3.7.8 Parameter set activation delay/ deactivation delay (Fr.05, Fr.06 )
Thetimeisadjustedwiththeseparameters:
- with which the activation of a new set is delayed (Fr.05)
- with which the deactivation of an old set is delayed (Fr.06)
At set changeover, the switch-off time of the old set and the switch-on time of the new set are added.

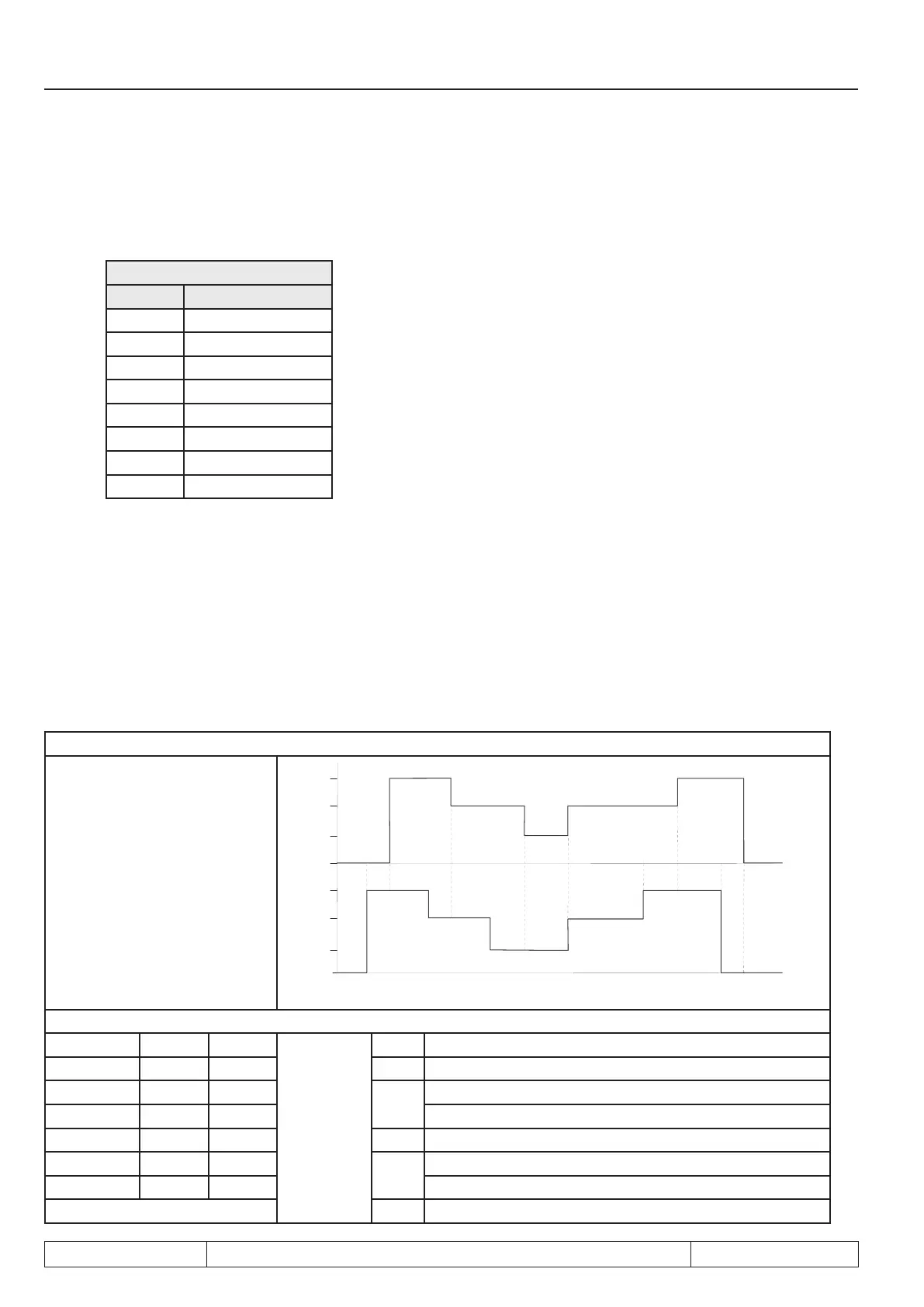

Picture 3.7.8 Activation delay and deactivation delay
Actual set
Default set
1
2
3
4
5
6
Set1
Set3
Set2
Set1
Set3
Set2
Set0
Set0
Example 1: Activation delay set 3 of 2s
on off 2: Deactivation delay set 3 of 2s
Set Fr.05 Fr.06 3: Deactivation delay set 2 of 1s +
0 0s 0s Activation delay set 1 of 2 s
1 2s 0s 4: immediate change-over since no delay is adjusted
2 0s 1s 5: Deactivation delay set 2 of 1s +
3 2s 2s Activation delay set 3 of 2s
6: Deactivation delay set 3 of 2s
