Hardware

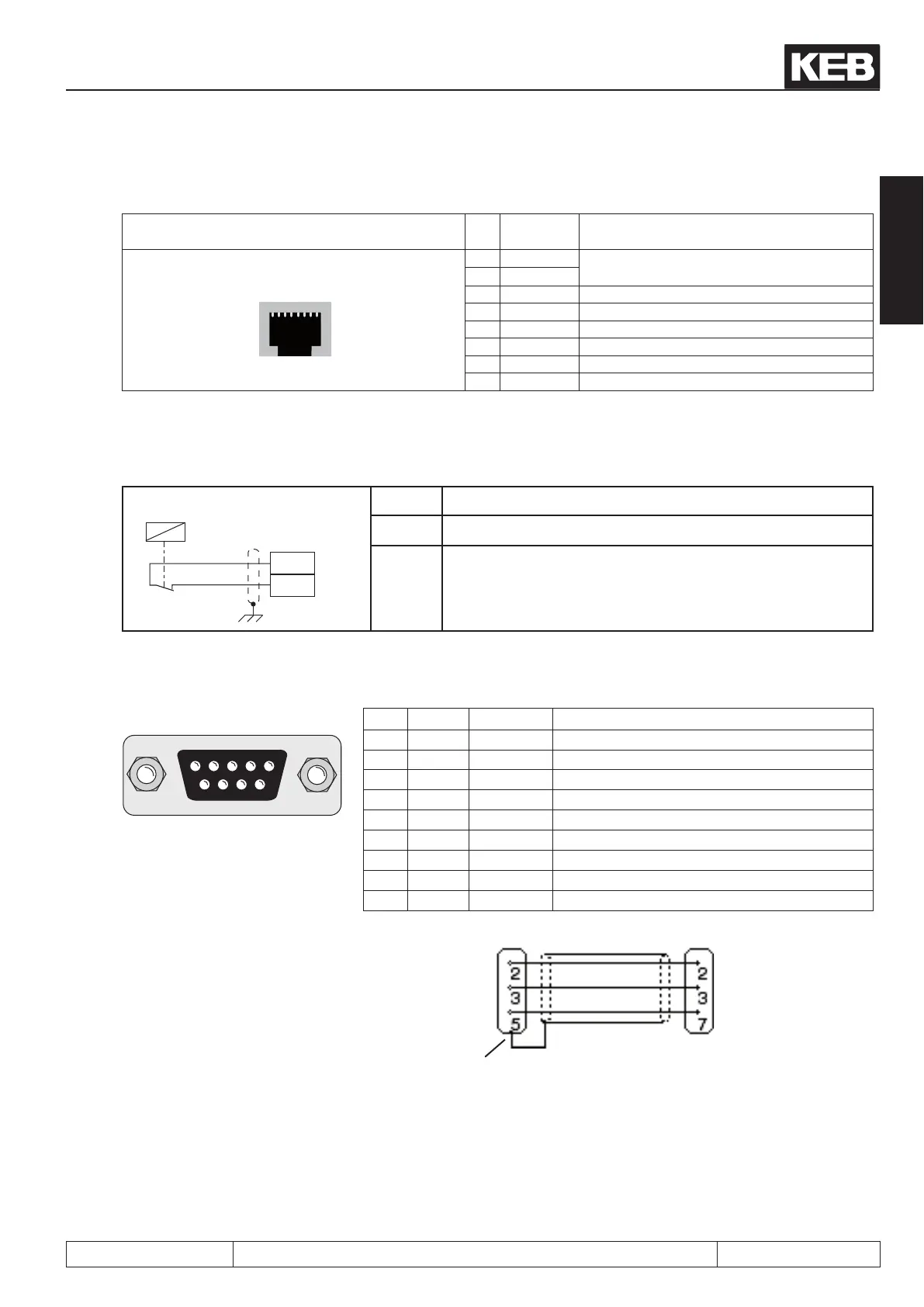

1.3.1.4 Synchronization line X2B

X2B RJ45 socket for phase synchronization and

temperature sensor

Nr. Name Function

1 8

1 T1 Connection for temperature sensor (Opti-

on)

2 T2

3 U13_syn Synchronization Phase 1 / 3

4 – reserved

5 U21_syn Synchronization Phase 2 / 1

6 – reserved

7 U32_syn Synchronization Phase 3 / 2

8 – reserved

Theconnectionismadewithastandardpatchcable1:1withthesocketX2Batthecommutationthrottle

1.3.1.5 Activation of the self-holding X2C

X2C

K1 Mains contactor

X2C Activation of the line contactor self-holding

1.3.1.6 HSP5 Operator interface X4B

X4B PIN RS485 Signal Meaning

54321

9876

1 - - reserved

2 - TxD Transmission signal RS232

3 - RxD Receive signal RS232

4 A‘ RxD-A Receive signal A RS485

5 B‘ RxD-B Receive signal B RS485

6 - VP Voltage supply +5 V (Imax=50 mA)

7 C/C‘ DGND Data reference potential

8 A TxD-A Transmission signal A RS485

9 B TxD-B Transmission signal B RS485

RS 232 Kabel

part number

00.58.025-001D

length 3 m

9 pol. SUB-D socket 9 pol. SUB-D connector

OperatorPC

Housing (PE)
