KEB combivert R6-S Applications Manual

Network components
© KEB, 2008-02 COMBIVERT R6-S Page 2.3 - 3
2
10
2.3 Network components
2.3.1 Available hardware
The KEB COMBIVERT R6 can be easily integrated into different networks. For that purpose the inverter is
ttedwithanoperator that is appropriate for the respective bus system. Following hardware components are
available:
– RS232 cable PC / operator Part No.: 00.58.025-001D
for operation with interface operator
– HSP5 adapter PC / control board Part No.: 00.F5.0C0-0001
for operation without operator; RS232 => TTL
– F5 Interface operator Part No.: 00.F5.060-2000
serial networks in RS232 or RS485 standard
– F5 Probus-DPoperator Part No.: 00.F5.060-3000
– F5 InterBus operator Part No.: 00.F5.060-4000
– InterBus remote bus connection Part No.: 00.B0.0BK-K001
(in connection with Interface Operator)
– F5 CanOpen operator Part No.: 00.F5.060-5000
– F5 Sercos operator Part No.: 00.F5.060-6000
– Diagnostic interface operator Part No.: 00.F5.0C0-0020

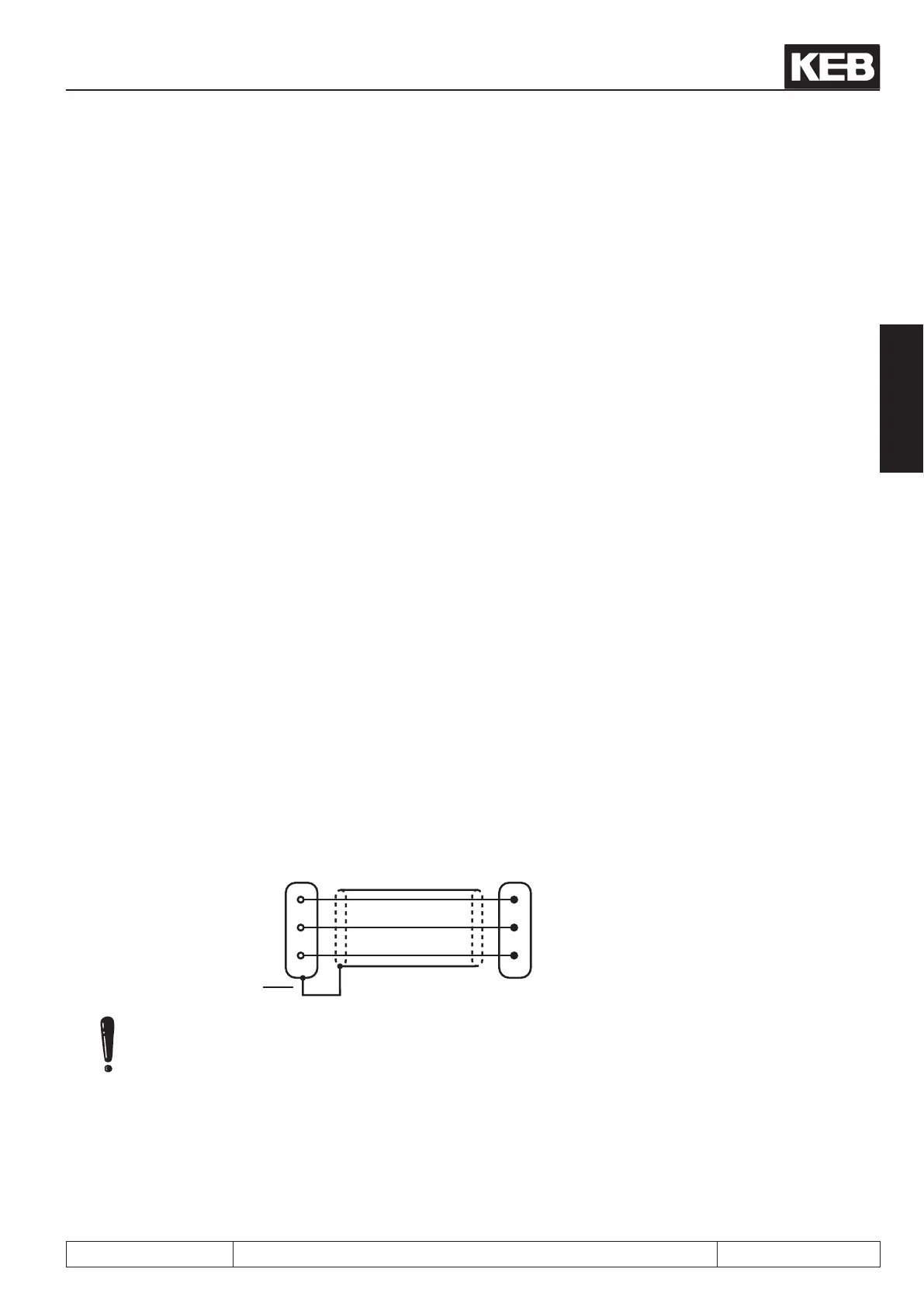

2.3.2 RS232 cable PC / operator 00.58.025-001D
The cable of 3m length is used for the direct RS232-connection between PC (9-pole SUB-D-connector) and
operator.
9-pole SUB-D coupling 9-pole SUB-D connector
Housing (PE)
2
3
5
2
3
7
PC F5-Operator
The RS232 cable is suitable exclusively for the communication between PC and operator.If the cable is plugged
in directly onto the control board, it can lead to the destruction of the interface of the PC.
