Page 2.3 - 4 COMBIVERT R6-S © KEB, 2008-02

Network components

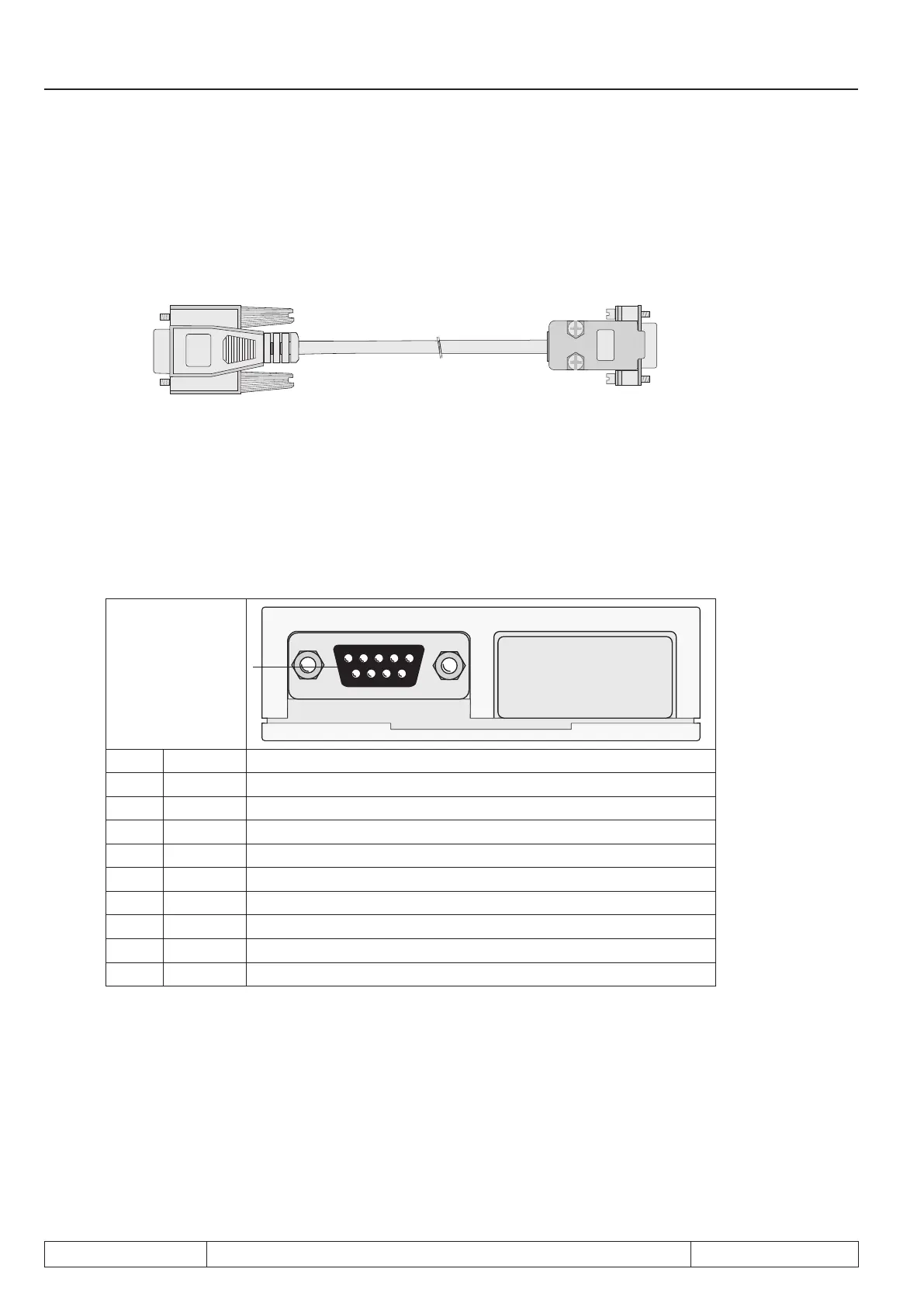

2.3.3 HSP5 cable PC / control board 00.F5.0C0-0010

The HSP5-cable is used for the direct connection between PC and control board. The necessary conversion to

TTL level occurs in the cable.

9-pole SUB-D coupling 9-pole SUB-D connector

HSP5

TTL

PC F5-Control board

2.3.4 Interface operator F5 00.F5.060-2000

A potential-separated RS232/RS484 interface is integrated in the interface operator (00.F5.060-2000). The

telegram structure is compatible to protocol DIN 66019 and ANSI X3.28 as well as to protocol expansion DIN

66019 II.

RS232/RS485

5 4

9 8 7 6

PIN Signal Meaning

1 – reserved

2 TxD Transmission signal/RS232

3 RxD Receive signal/RS232

4 RxD-A (+) Receive signal A/RS485

5 RxD-B (-) Receive signal B/RS485

6 VP Supply voltage -Plus +5V (Imax=10mA)

7 GND Data reference potential; mass for VP

8 TxD-A (+) Transmission signal A/RS485

9 TxD-B (-) Transmission signal B/RS485

Relating to further eld bus connections please contact KEB.
