Analog outputs
© KEB, 2008-02 COMBIVERT R6-S Page 3.3 - 5
3
10

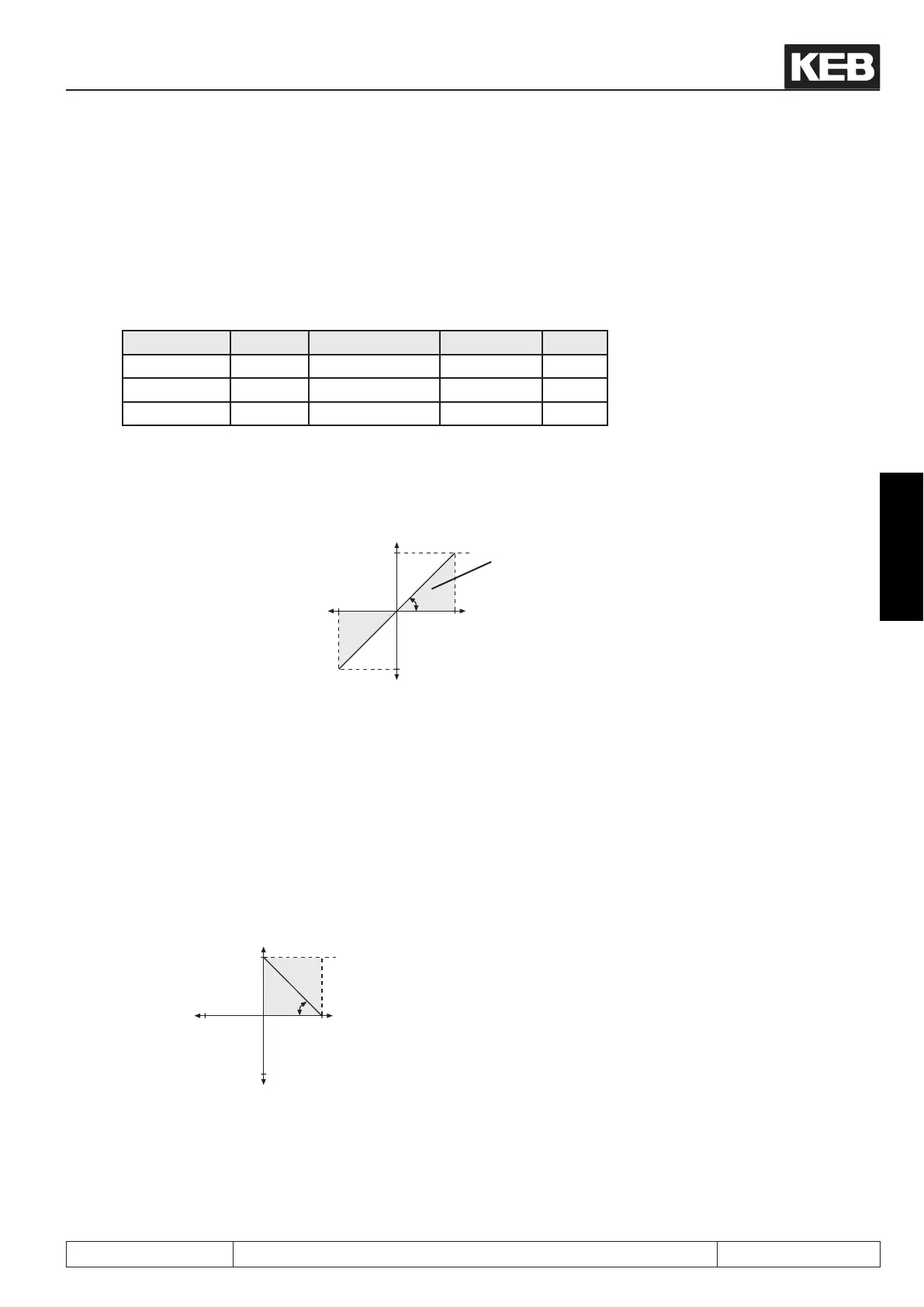

3.3.5 Amplier of the output characteristic (An.33...35 / An.43...45 / An.49...51)
As showninpicture7.2.1,thecharacteristicampliersfollowaftertheselectionoftheoutputsignal. With the-
se parameters the output signal can be adapted in x and Y direction and in the slope to the requirements. No
zero offset is adjusted at factory setting, the amplicationis1,i.e.,100%oftheoutputsizecorrespond to 10V
at the analog output (see picture 7.2.2).
Function ANOUT1 Value range Resolution Default
Amplication An.33 ±20,00 0,01 1,00
X-Offset An.34 ±100,0% 0,1% 0,0%
Y-Offset An.35 ±100,0% 0,1% 0,0%
Picture 7.2.5.a factory setting:nooffset,gain1
Output voltage
10V
100%
-100%
-100%
An.33
An.34
An.35
100%
visible
range
variable to be indicated
Invert the analog output
An example for theuseofthecharacteristicamplierisshowninpicture7.2.5.b
1. set X-Offset (An.34) to 100 (%)
2. set the gain (An.33) to -1.00
Picture 7.2.5.b Invert the analog output
10V
100%-100%
-100%
An.34
An.35
100%
An.33
This adjustments cause an inversion of the analog signal.
0% corresponds to 10V at the output
100% corresponds to 0V at the output
