Regenerative adjustments

3.5.5 Optimize the regenerative current

Parameter Addr. R PG E Min.

value

Max.

value

Res. [?] Default

cS.04 Control angle 0F04h rw - - 0 600 1 - var

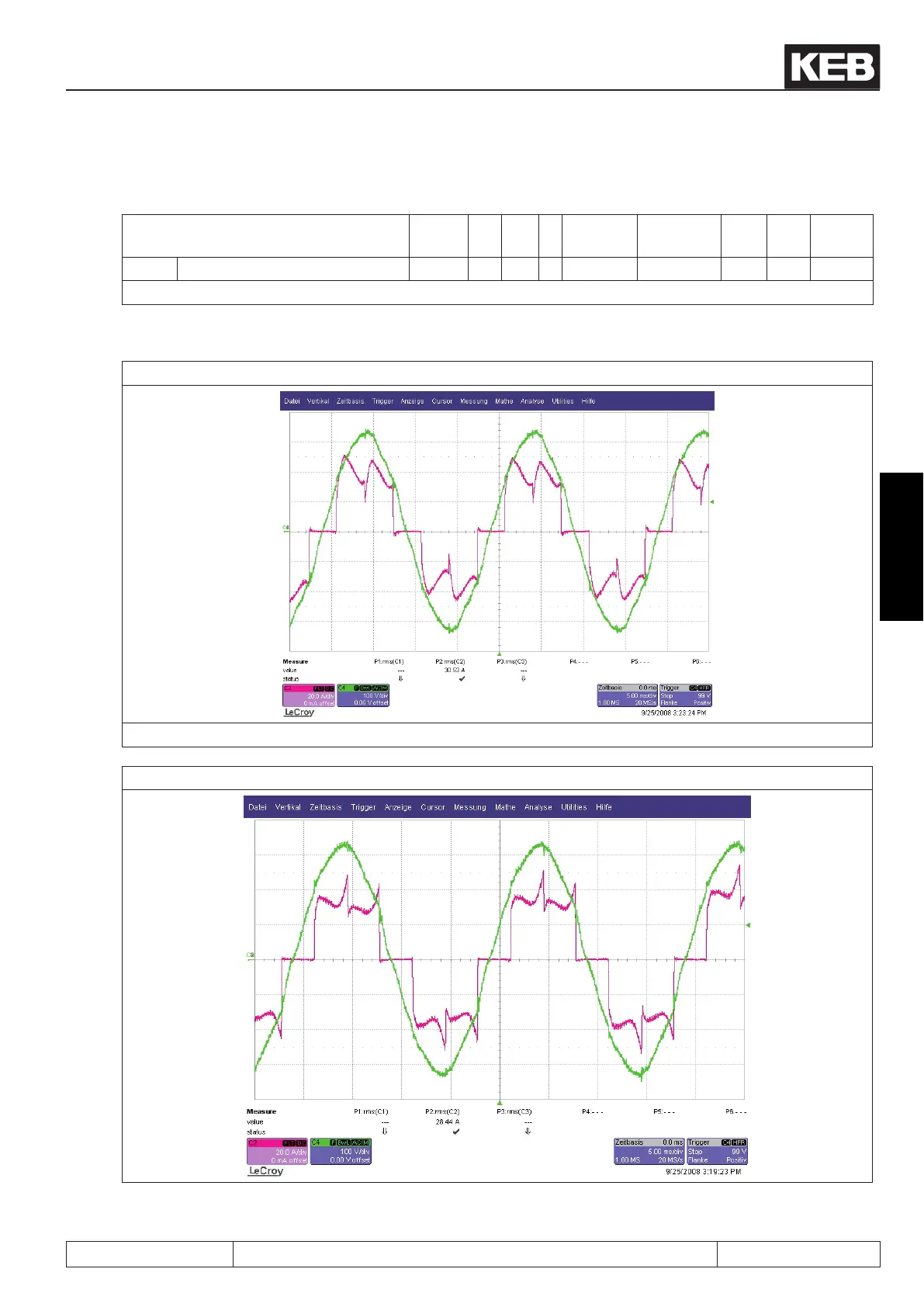

The regenerative current can be optimized with an oscilloscope by the control angle (cS.04) .

The following pictures give an overview of the current at differentcontrolangles:

1) Bad current adjustment with smaller angle (diode loss).

*) Over- / undershoot of the current

2) Optimal currentow
