Mechanical installation
Operation Manual Supply Unit SO CM-P BG1+2
ID no.: 1400.201B.5-00 Date: 02/2020
Mechanical installation

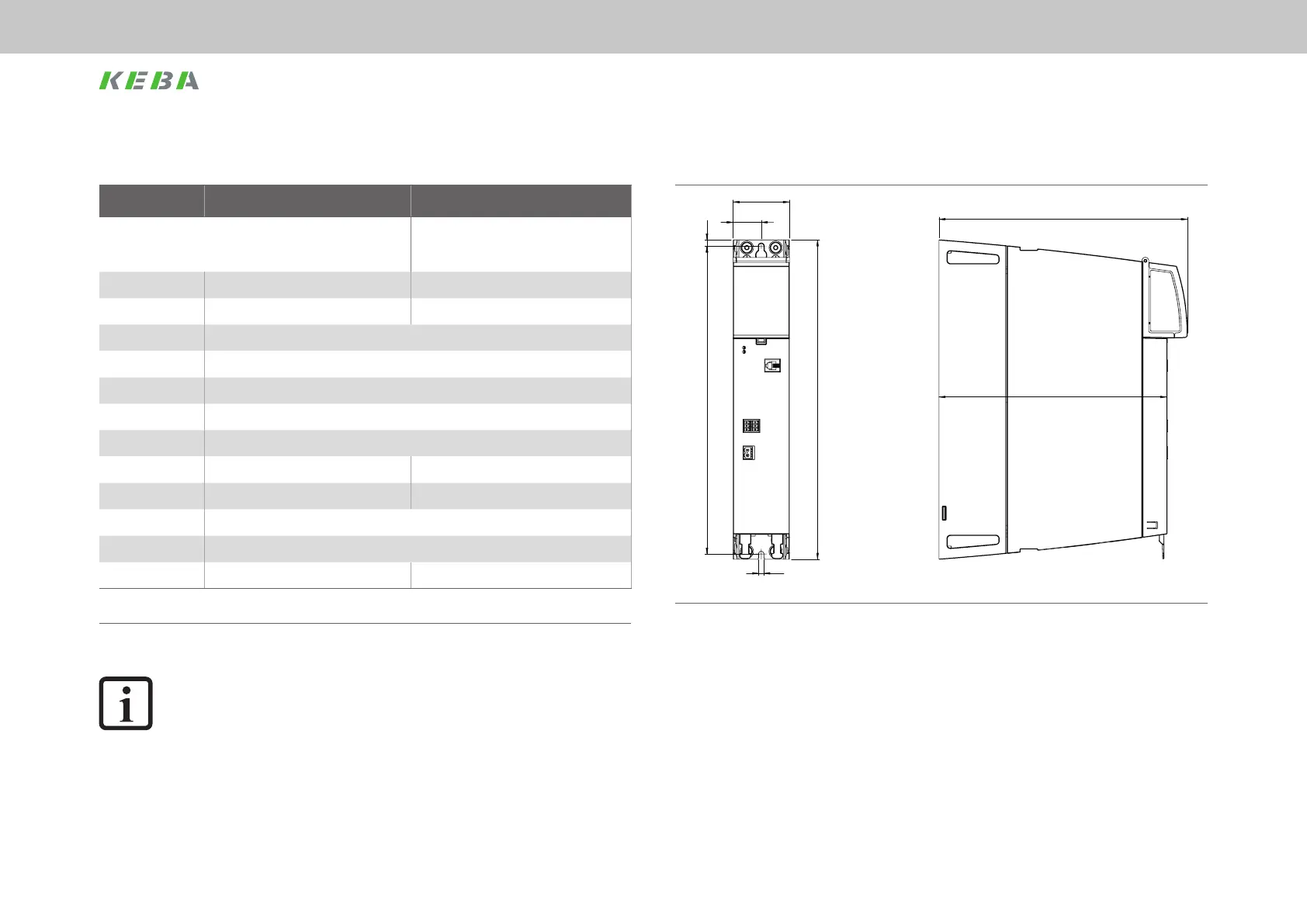

3.4.1 Dimensions (housing with heat sink)
ServoOne CM-P Supply unit BG1 Supply unit BG2
Type SOCM-P.0010 SOCM-P.0022
Weight 2.65 kg 5.1 kg
B (width) 55 110
H (height) 310
H1 299
H2 6
T (total depth) 241
T1 222
A 27.5 27.5
A1 - 55
C 5
Side clearance Direct butt mounting
Screws 2 x M4 4 x M4
All dimensions in mm
Table 3.1 Dimensions for wall mounting
NOTE:
The supply unit must always be tted to the left of the axis controllers.
The highest power axis controller should be close to the supply unit. For dou-
ble-axis and triple-axis controllers it is the total power that counts.
3.4.2 Dimensional sketches, wall mounting
T
T1
H2H1
A
B
H
C
Figure 3.4 Dimensional drawing, supply unit BG1, for dimensions see Table 3.1
