Mechanical installation
Operation Manual Supply Unit SO CM-P BG1+2
ID no.: 1400.201B.5-00 Date: 02/2020
Mechanical installation
3.5.1 Dimensions, cold plate model
ServoOne CM-P Supply unit BG1 Supply unit BG2
Type SOCM-P.0110 SOCM-P.0122
Weight 2.2 kg 4.2 kg
B (width) 54.5 109
H (height) 310
H1 299
H2 6
T (total depth) 188.5
T1 170
A 27.25 27.25
A1 - 55
C 5
Side clearance Direct butt mounting
Screws 2 x M4 4 x M4
All dimensions in mm
Table 3.2 Dimensions, cold plate
NOTE:
The supply unit must always be tted to the left of the axis controllers.
The highest power axis controller should be close to the supply unit. For dou-
ble-axis and triple-axis controllers it is the total power that counts.
H2
H1
C
H
B
A
T
T1

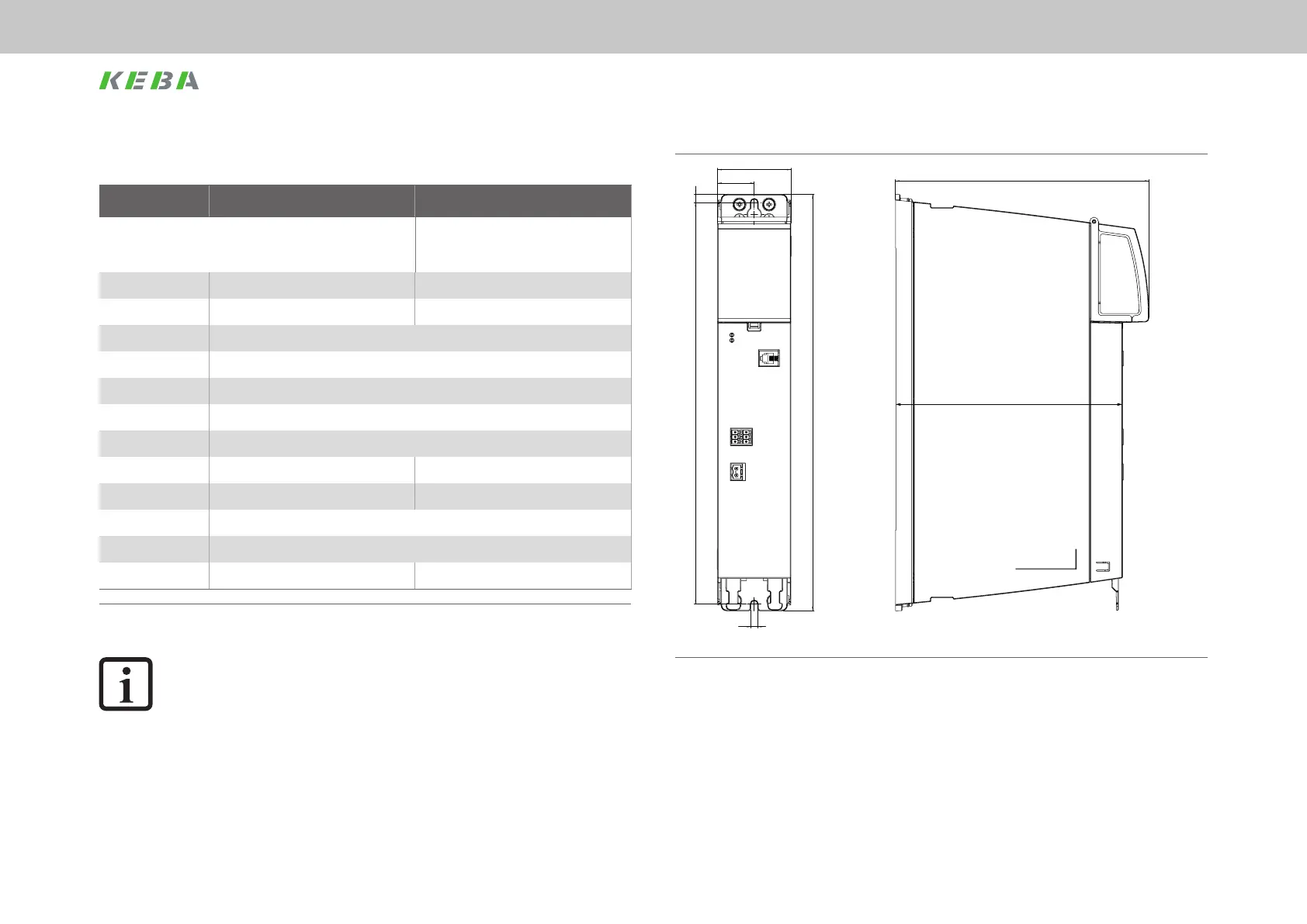

Figure 3.6 Dimensional drawing, ServoOne CM axis controller BG1 cold plate (see Table 3.2)
