1 Diagnostics
Operation Manual Supply Unit SO CM-P BG1+2
ID no.: 1400.201B.5-00 Date: 02/2020
Diagnostics
5 Diagnostics

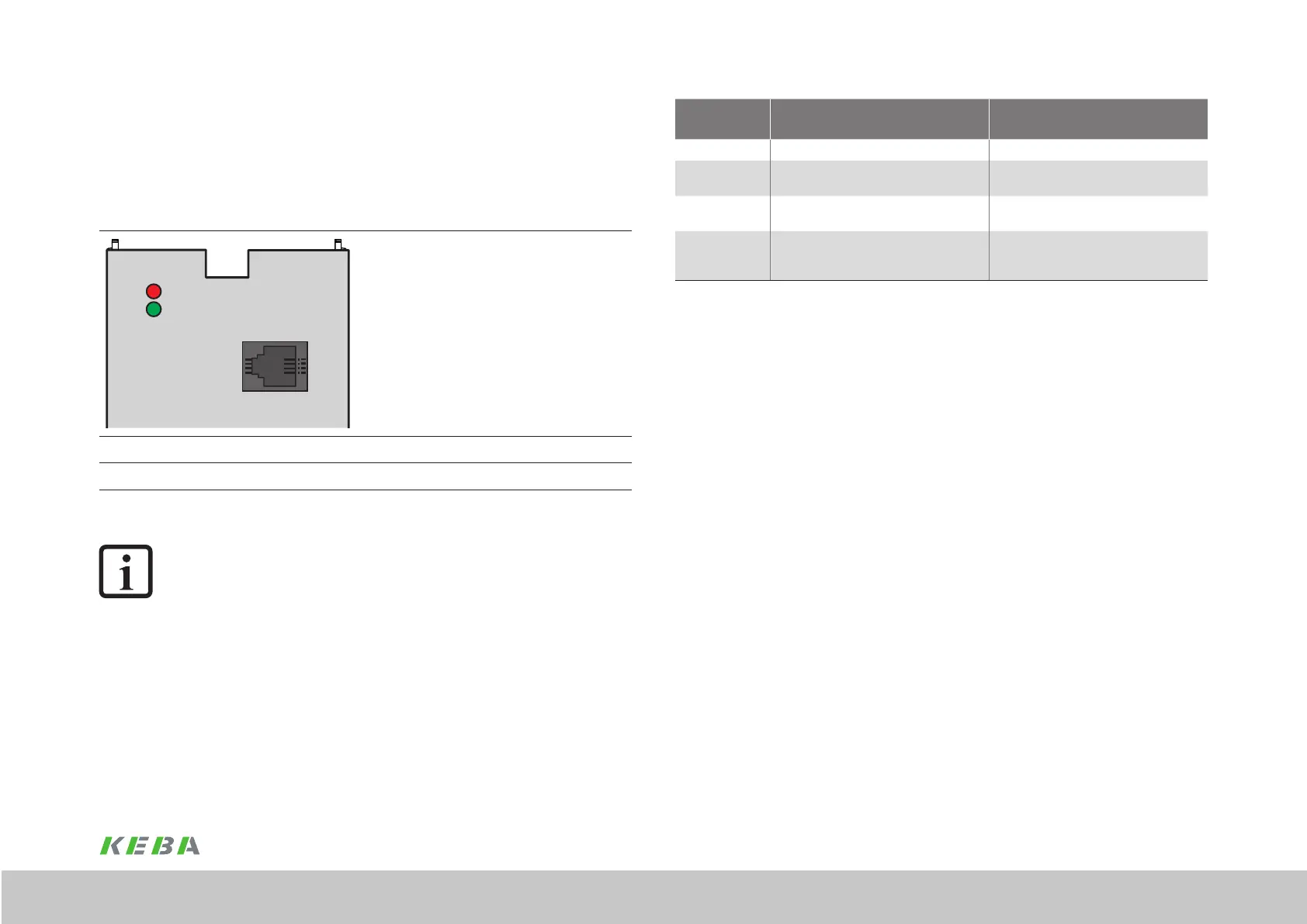

5.1 Status indication LED
X3
XC OUT
DO00 DO03
DO01 DO04
DO02GND
X6 / State
ERR
Voltage
X5 / DO05
LED red (ERR) Supply unit error status (ashing code)
LED green (Voltage) Status mains supply available
Figure 5.1 Signicance of the status LEDs
NOTE:
You will nd details on the LED messages in the ServoOne CM device help
(ID. no.: 1400.209B.x)
Behaviour
Green LED Voltage
(Operating indication)
Red LED ERR
(Error indication)
Off - No error and no warning
Flashing slowly
Ready, the DC link is not connected to the
system.
There is a warning, however the supply unit
is ready.
Flashing quickly
Supply unit is in the pre-charging phase,
can take a few seconds.
-
On
Supply unit is pre-charged and connected
to the system.
There is an error, the DC link is
disconnected from the system. Error
message appears in the axis modules.
Table 5.1 Signicance of the status LEDs, ServoOne CM-P Supply Unit
