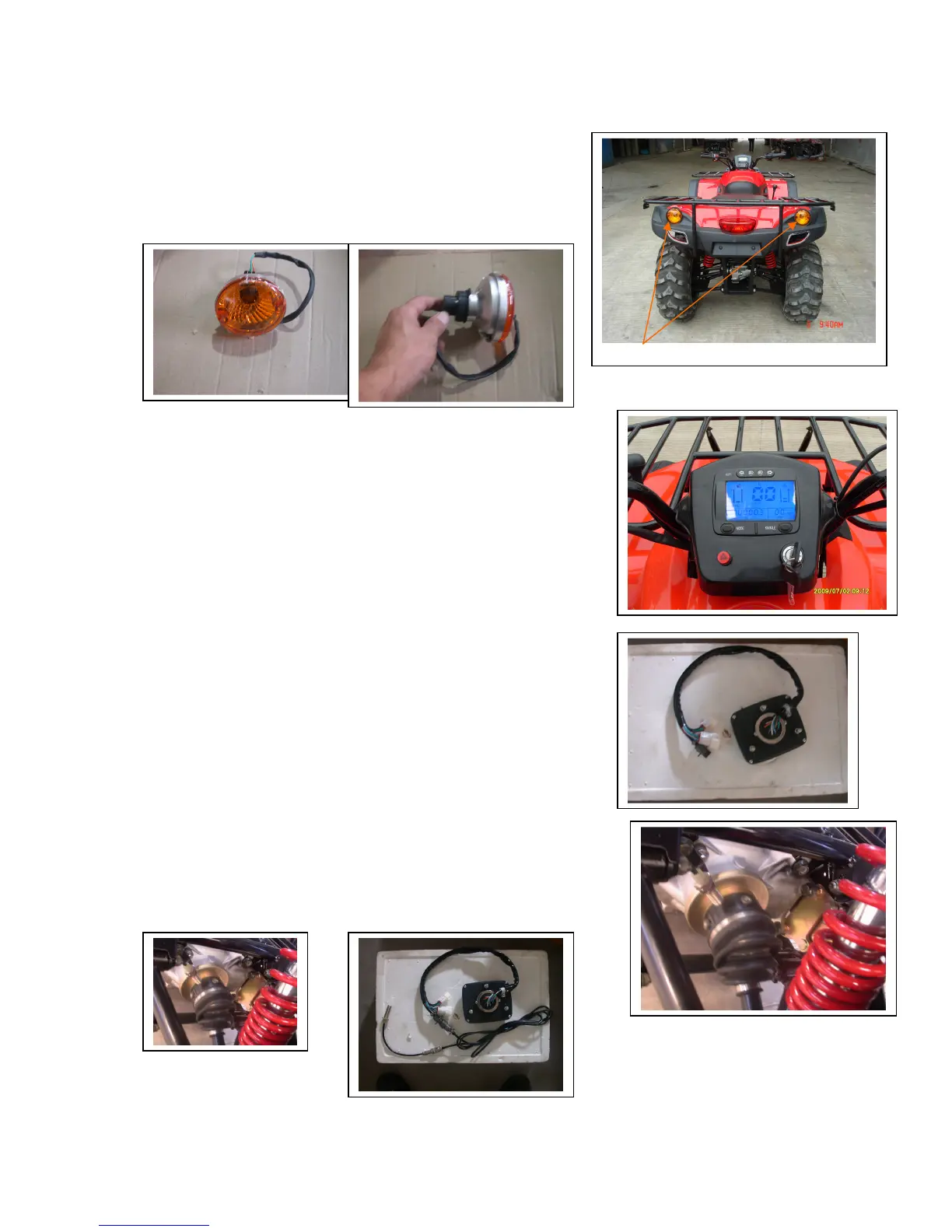

Rear Direction lights remove
The same disassembling procedure like front direction light.
Please use the pliers to remove the seat. Then the bubble
could be see and replaced
14.7 Instrument Panel
The instrument panel includes fuel gauge, speed meter, water
Temperature gauge, right and left turn signal, trip do-meter,
and indicator camp. A LCD is used on ATV8E’s instrument panel
to display all driving information for users. Therefore, this is an
all-in-one instrument panel.
Instrument Panel
REMOVAL
There is a cable and connector on the back of the
instrument panel. After removing instrument panel,
users can find out
an electrical connector which is connected with a driving
sensor at the back of the instrument panel
The sensor is installed at the brake disk and a cable is tightened
on the left side of knuckle component
as shown in pictures
