48

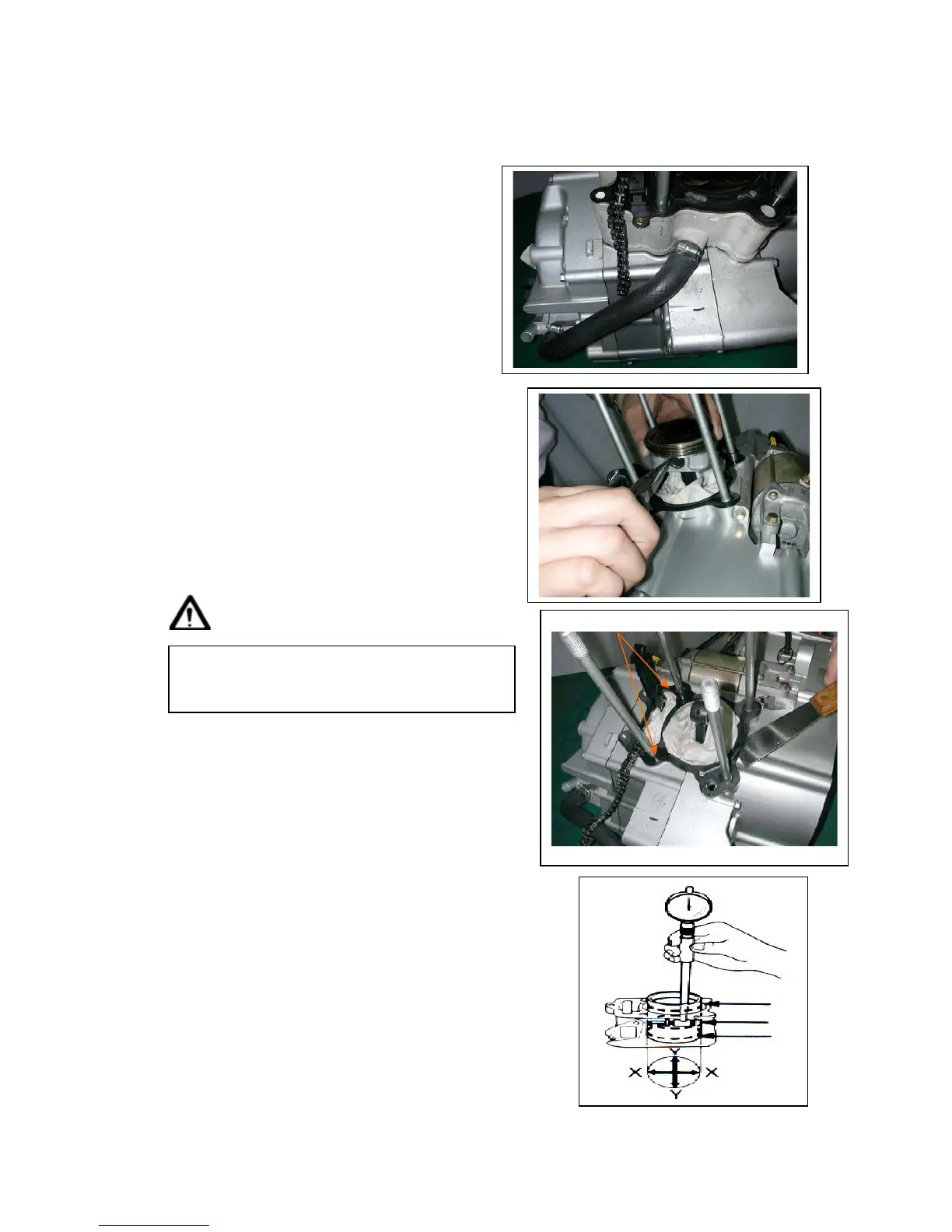

7-4 Cylinder and Piston Removal
Remove cylinder head (refer to chapter 6).
Remove coolant hose from cylinder.
Remove cylinder.
Cover the holes of crankcase and cam chain
with a piece of cloth.
Remove piston pin clip, and then remove
piston pin and piston
Remove cylinder gasket and dowel pin.
Clean up all residues or foreign materials
from the two matching surfaces of cylinder
and crankcase
Caution
Inspection
Check if the inner diameter of cylinder is wear
out or damaged.
In the 3 positions, top, center and bottom, of
cylinder, measure the X and Y values respective
in the cylinder.
Service limit: 71.016 mm
