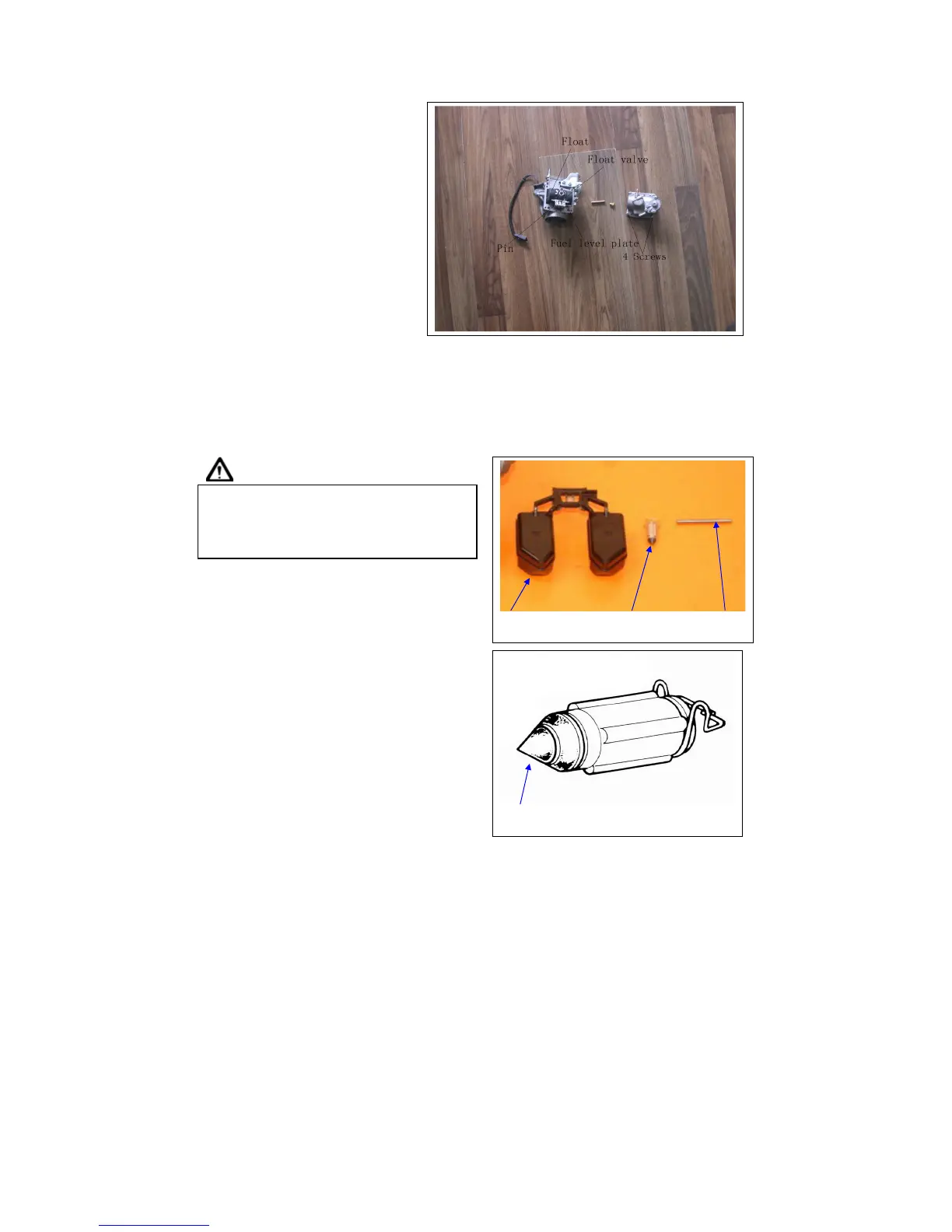

5-7 Float Chamber
Disassembly
Remove 4 mounting screws and remove
float chamber cover.
Remove the fuel level plate, float pin,
float and float valve.
Inspection
Check float valve and valve seat for damage,
blocking.
Check float valve for wearing, and check
valve seat face for wear, dirt.
Caution
Caution In case of worn out or dirt, the float valve
and valve seat will not tightly close causing fuel
level to increase and as a result, fuel flooding. A
worn out or dirty float valve must be replaced
with a new a new one.
Float Float valve Pin
Check for wear or damage
