KEEWAY ATV300 - Drive Face Service

59

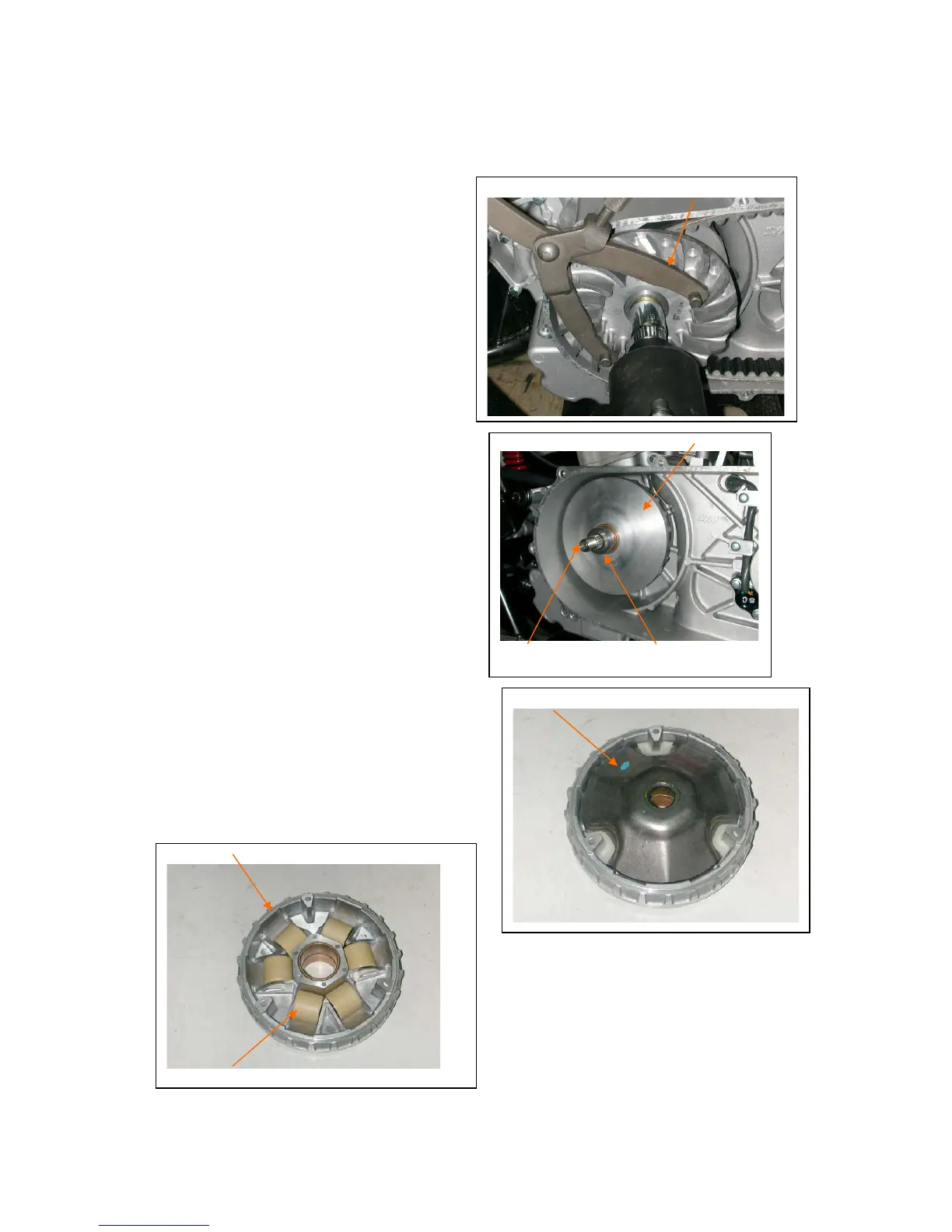

8-6 Drive Face
Removal
Remove left crankcase cover.
Hold drive face with universal holder,
and then remove drive face nut.
Remove drive face and drive belt.
Remove movable drive face comp and
drive face boss from crankshaft.
Remove ramp plate.
Remove weight rollers from movable
drive face.
Universal holder
Movable drive face
Crankshaft Drive face boss
Ramp plate
Movable drive face
Weight roller
