58

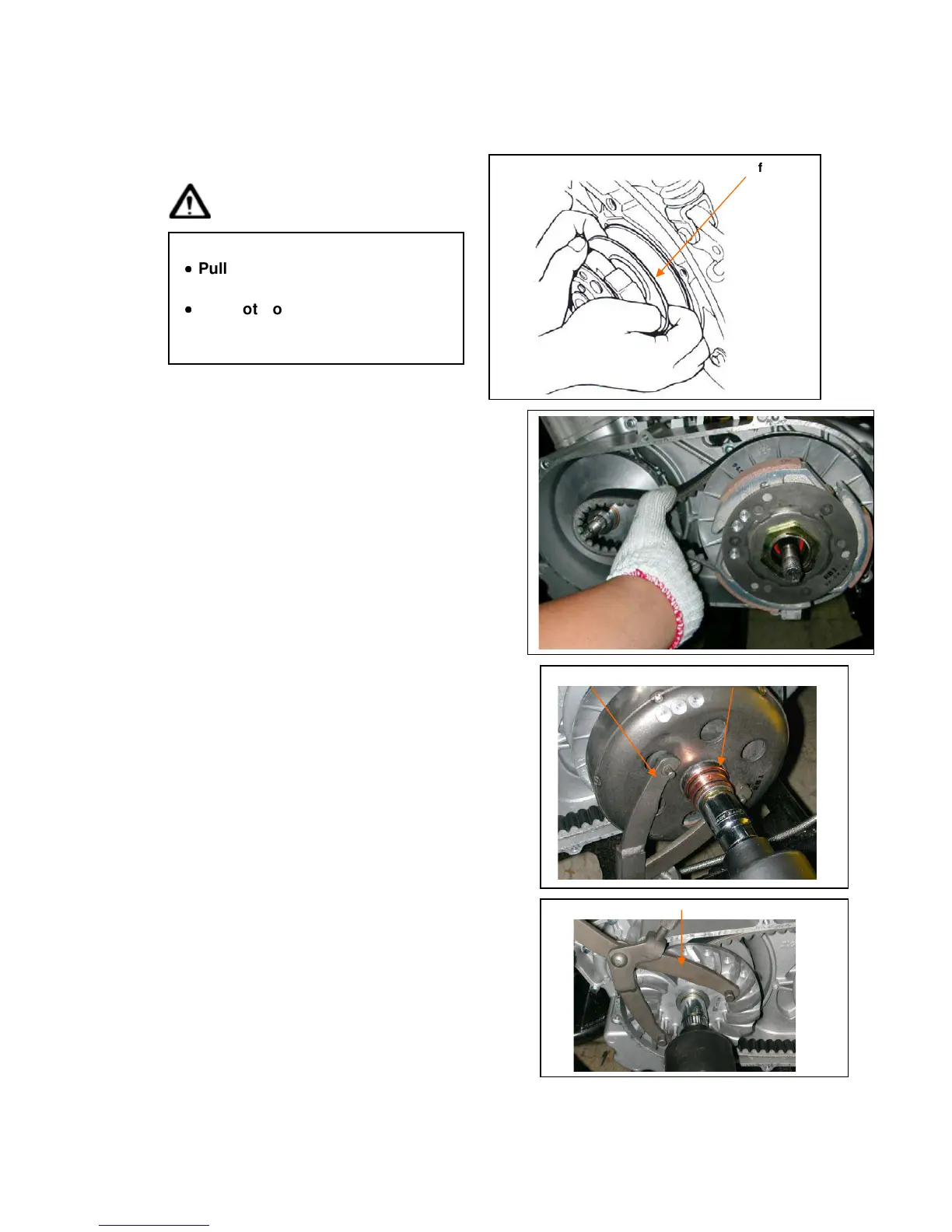

Installation
Caution
Install drive belt onto driven pulley.
Install the driven pulley that has installed
the belt onto drive shaft.
On the drive belt another end to the
movable drive face
Install the clutch outer and bearing stay collar.
Hold the clutch outer whit universal holder,
and then tighten nut to specified torque value.
Torque value: 5.0~6.0kgf-m
Install the drive face, washer and drive face nut.
Hold drive face with universal holder, and then
tighten nut to specified torque value.
Torque value: 8.5~10.5kgf-m
˙
˙˙
˙
Pull out driven face to avoid it
closing.
˙
˙˙
˙
Cannot oppress friction plate
comp in order to avoid creates the
distortion or the damage.
