KEEWAY ATV300 - Lubrication Precautions

16
4-2 Precautions in Operation
General Information:
This chapter contains maintenance operation
for the engine oil pump and gear oil replacement.
Specifications
Engine oil quantity Disassembly: 1200 c.c.
Change: 1000c.c.

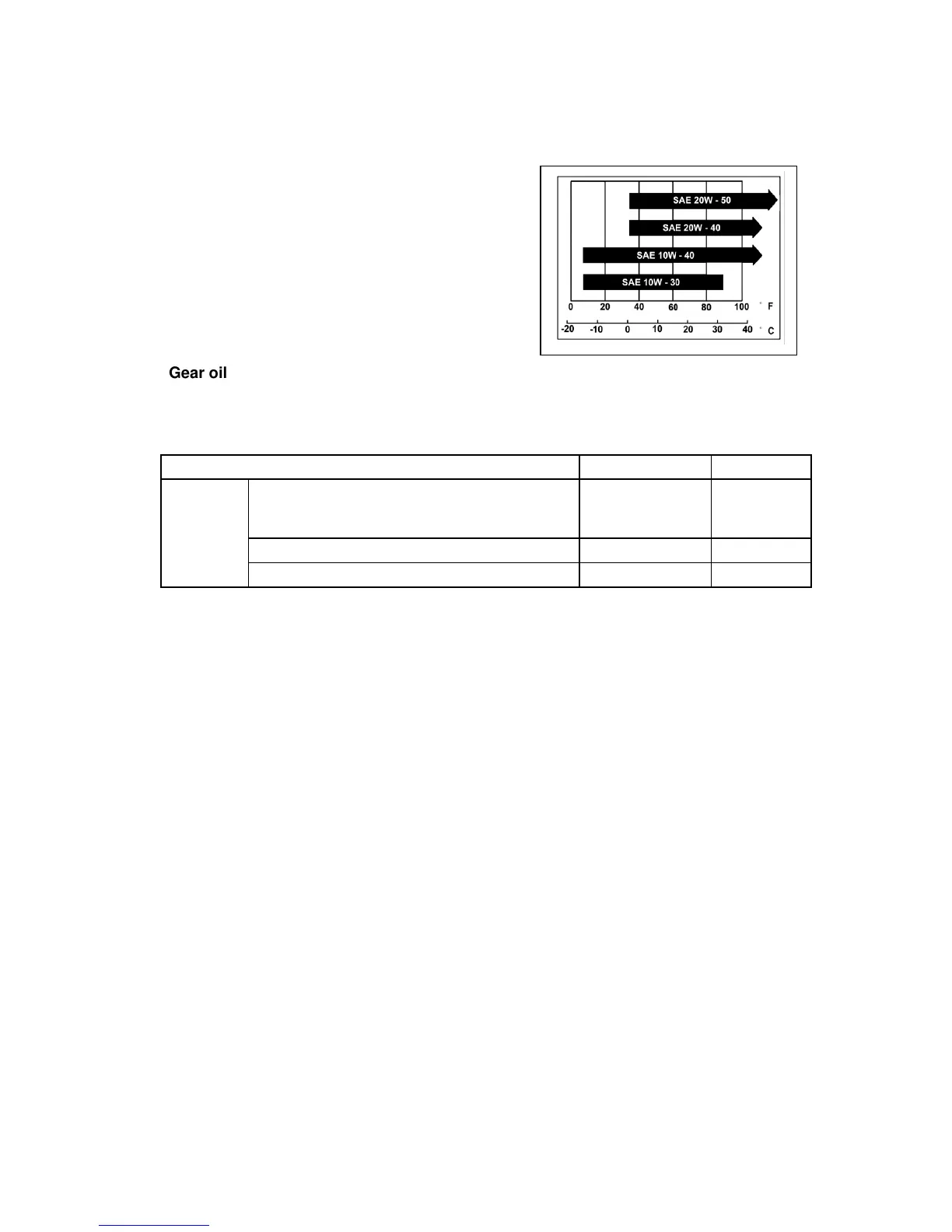

Oil viscosity SAE 10W-40 (Recommended King serial oils) 單位
單位單位
單位 :mm
Gear oil Disassembly: 750c.c.
Change: 650c.c.
Gear oil viscosity SAE 10w- 40
(Recommended SYM Hypoid gear oils)
Torque value
Torque value oil strainer cap 1.5~3.0kgf-m
Engine oil drain bolt 1.9~2.5kgf-m
Gear oil drain bolt 1.0~1.5kgf-m
Gear oil join bolt 1.0~1.5kgf-m
Oil pump connection bolt 0.8~1.2kgf-m
4-3 Troubleshooting
Low engine oil level Low oil pressure
Oil leaking Low engine oil level
Valve guide or seat worn out Cylinder head gasket damage
Piston ring worn out Piston ring worn out
Dirty oil
No oil change in periodical
Cylinder head gasket damage
Piston ring worn out
Items
Standard (mm)
Limit (mm)
Oil pump
Inner rotor clearance
0.15
0.20
Clearance between outer rotor and body
0.15~0.20
0.25
Clearance between rotor side and body
0.04~0.09
0.12
