Timing mark

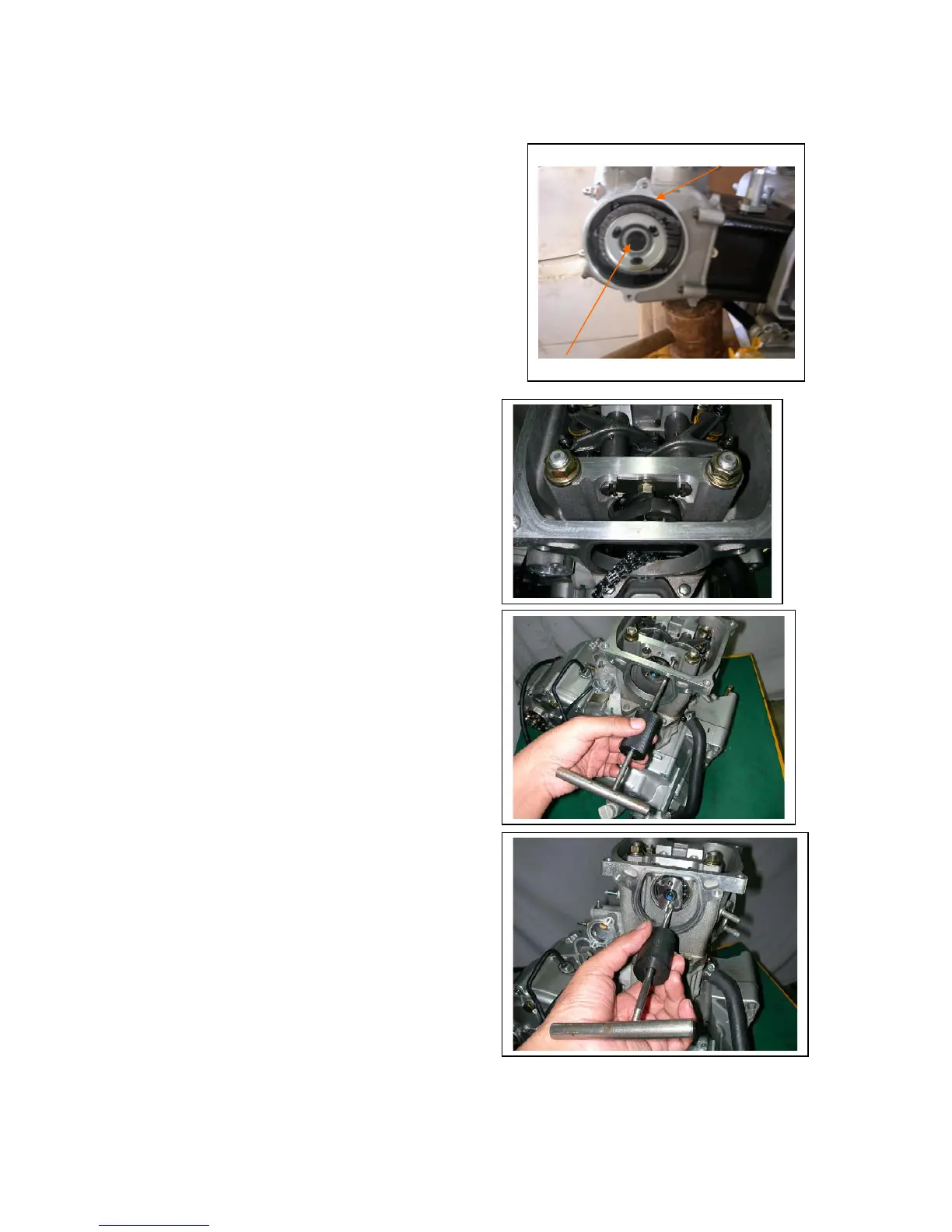

Remove left crankcase cover, and turn the
Turn the drive face, and align the timing
mark on the sprocket with that of cylinder
head, piston is at TDC position.
Remove cam sprocket bolts and then
remove the sprocket by prying chain out.
Remove cam shaft setting plate (1 bolt).
Remove rocker arm shafts and rocker arms.
Special Service Tool:
Rocker arm and cam shaft puller
Remove cam shafts.
Special Service Tool:
Rocker arm and cam shaft puller
To Next Page
