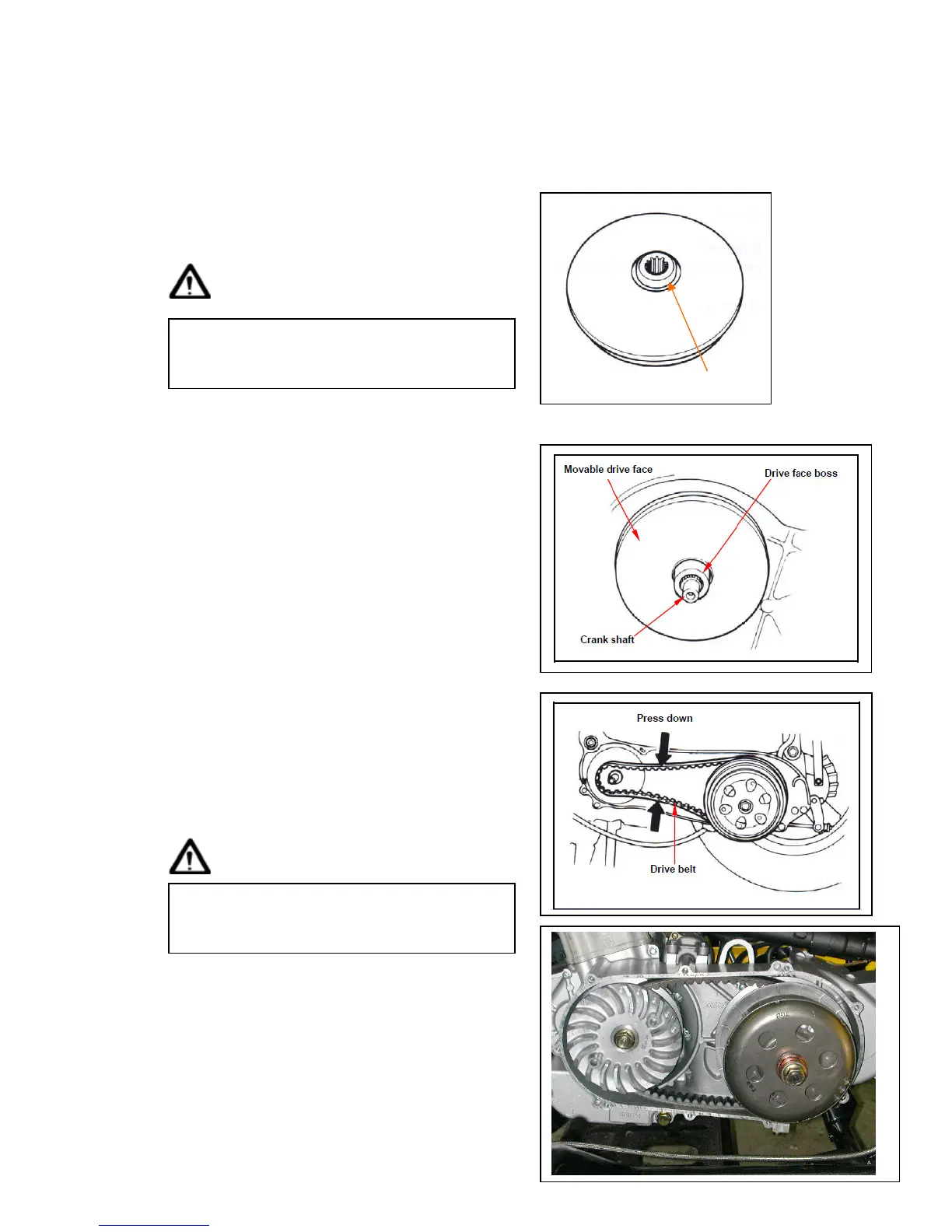

Install ramp plate.
With 4~5g grease spreads wipes drives in the
movable drive face axis hole.
Install drive face boss.
Caution
Install movable drive face comp. onto crankshaft
Driven pulley installation
Press drive belt into pulley groove, and then
pull the belt onto drive shaft
Install drive face, washer and nut
Caution
Hold drives face with universal holder.
Tighten nut to specified torque.
Torque value: 8.5~10.5kgf-m
Install left crankcase cover.
The movable drive face surface has to be
free of grease. Clean it with cleaning
solvent.
Drive face boss
Make sure that two sides of pulley surfaces
have to be free of grease. Clean it with
cleaning solvent.
