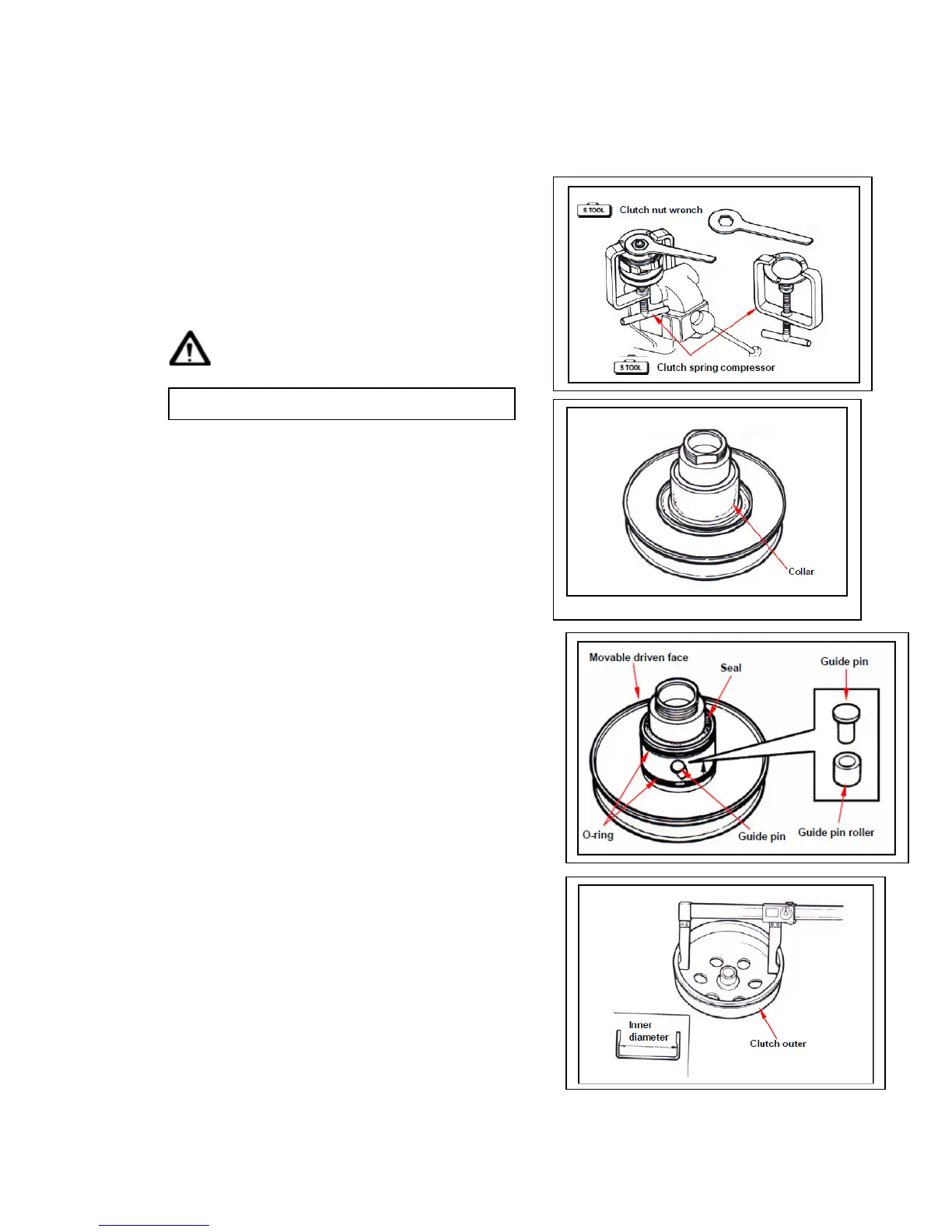

8-7 Clutch Outer/Driven Pulley
Disassembly
Remove drive belt, clutch outer and driven pulley.
Install clutch spring compressor onto the pulley
assembly, and operate the compressor to let the
wrench be installed more easily.
Caution
Hold the clutch spring compressor onto bench
vise, and then remove mounting nut with special
service tool.
Release the clutch spring compressor and remove
friction plate, clutch weight and spring from driven
pulley.
Remove seal collar from driven pulley.
Remove guide pin, guide pin roller, and movable driven
face, and then remove O-ring & oil seal seat from movable
driven face
Inspection
Clutch outer
Measure the inner diameter of clutch outer.
Replace the clutch outer if exceed service limit.
Service limit: mm
To Next Page
