5-5 Air Cut-Off Valve

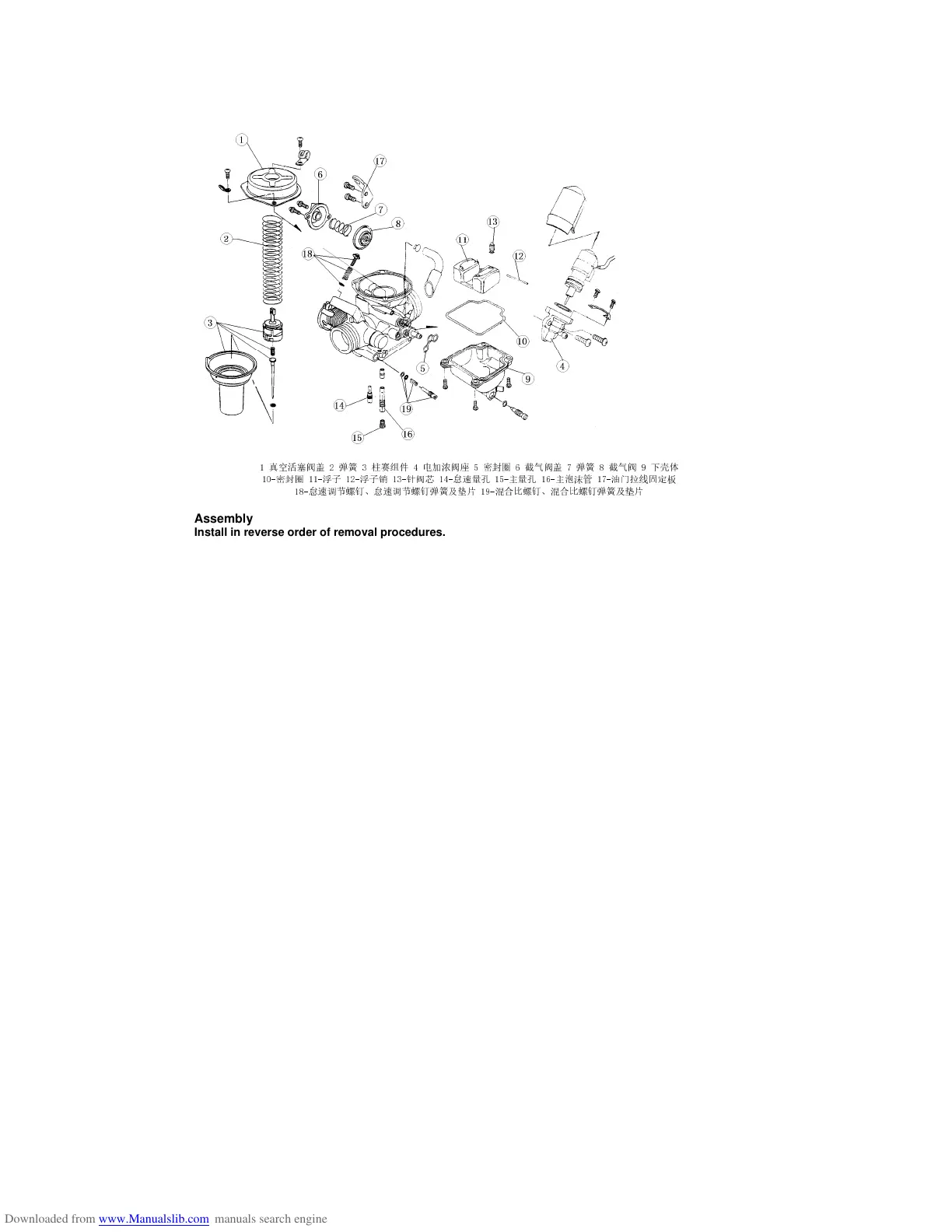

Disassembly
1-真空活塞阀盖 2-弹簧 3-柱赛组件 4-电加浓阀座 5-密封圈 6-截气阀盖 7-弹簧 8-截气阀 9-下壳体
10-密封圈 11-浮子 12-浮子销 13-针阀芯 14-怠速量孔 15-主量孔 16-主泡沫管 17-油门拉线固定板
18-怠速调节螺钉、怠速调节螺钉弹簧及垫片 19-混合比螺钉、混合比螺钉弹簧及垫片
Assembly
Install in reverse order of removal procedures.
