3.1 ENGINE SHALL BE REMOVED IN THE CONDITIONS OF NECESSARY
REPAIRMENT OR ADJUSTMENT TO THE TRANSMISSION AND
COMBUSTION SYSTEM ONLY
3.2 ENGINE REMOVAL
Before removing engine, you need to remove all of components such as seat, front and
back fender, fuel tube, exhaust pipe, carburetor cable and drive shafts
…
……
…
etc. You can then
see three hanger bolts which have screwed on engine.
Loosen these three hanger bolts. You have succeeded to remove this engine.
There are some pictures to describe main step of removing engine.
Disconnect the wire connectors. There are three
connectors for carburetor auto-choke, starter motor
and generator respectively.

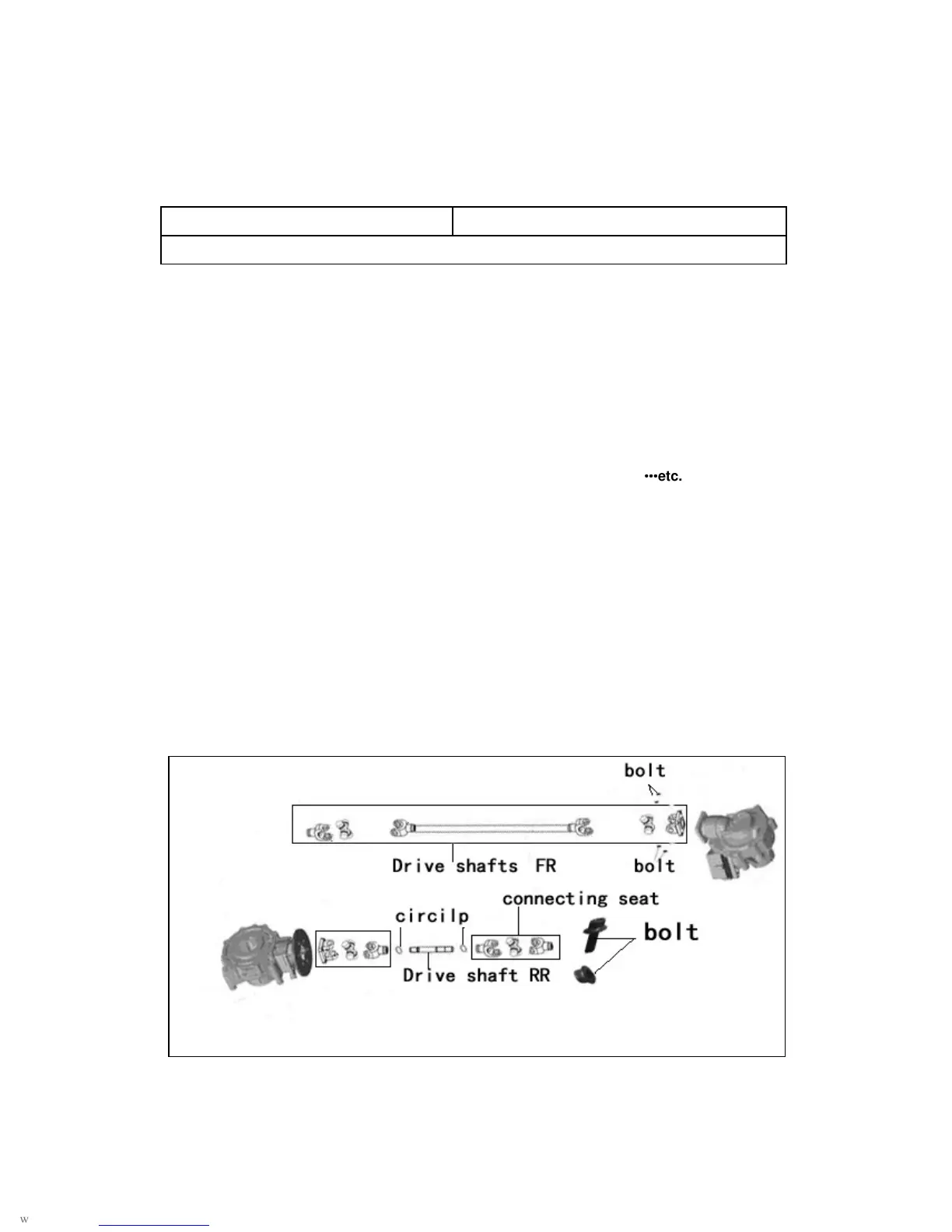

Remove the drive Shafts.
