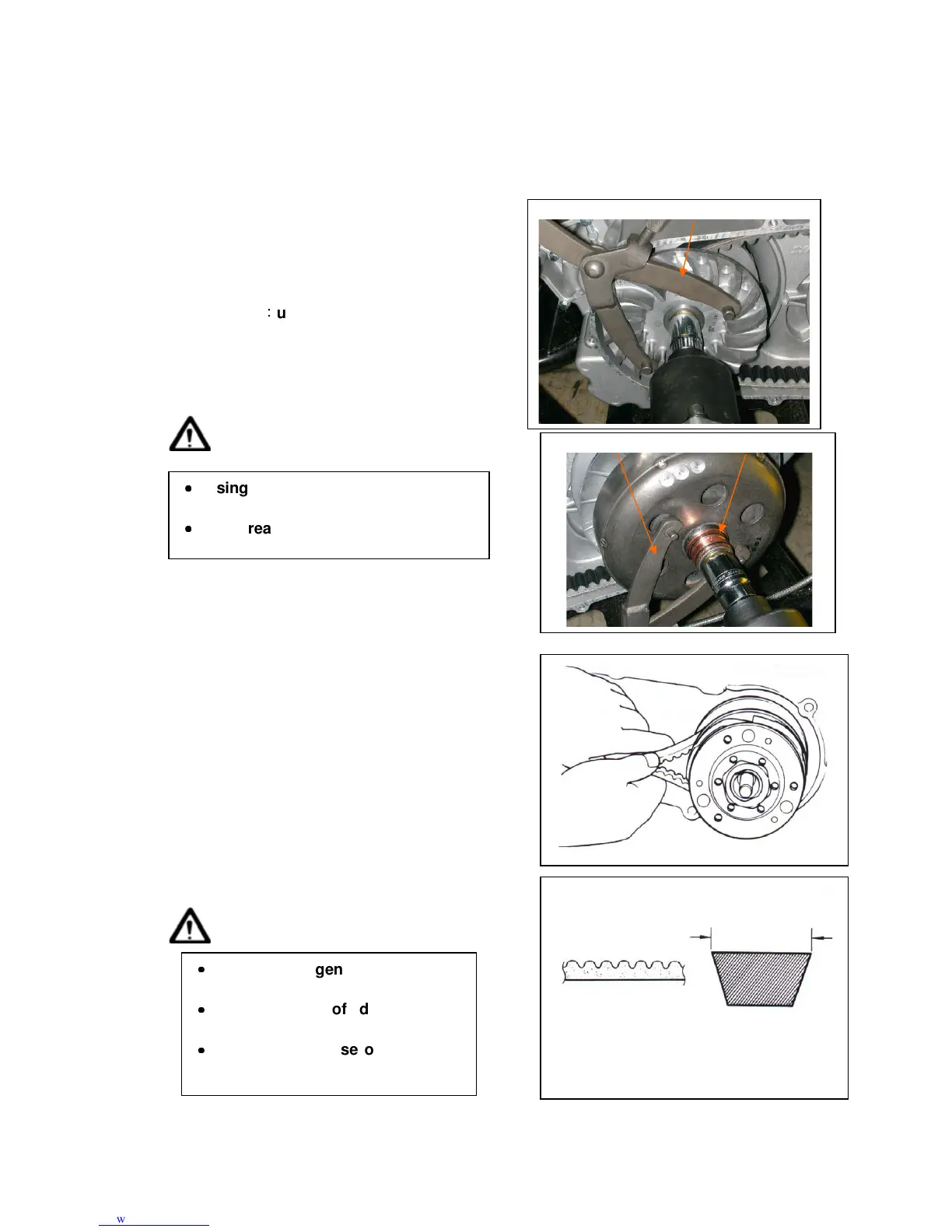

8-5 Drive Belt
Removal
Remove left crankcase cover.
Hold drive face with universal holder,
and remove nut and drive face.
Special Tool ： universal holder
Hold clutch outer with universal holder, and
remove nut, bearing stay collar and clutch outer
Caution
Push the drive belt into belt groove as diagram
hown so that the belt can be loosened, and then
remove the driven pulley.
Remove driven pulley. Do not remove drive belt.
Remove the drive belt from the groove of driven
pulley.
Inspection
Check the drive belt for crack or wear. Replace
it if necessary.
Measure the width of drive belt as diagram shown
Service Limit: 22.5 mm
Replace the belt if exceeds the service limit.
Caution
˙
˙˙
˙ Using special service tools for
tightening or loosening the nut.
˙
˙˙
˙ Fixed rear wheel or rear brake will
damage reduction gear system.
Universal holder
˙
˙˙
˙ Using the genuine parts for
replacement.
˙
˙˙
˙ The surfaces of drive belt or
pulley must be free of grease.
˙
˙˙
˙ Clean up all grease or dirt before
installation.
Universal holder
Bearing stay collar
