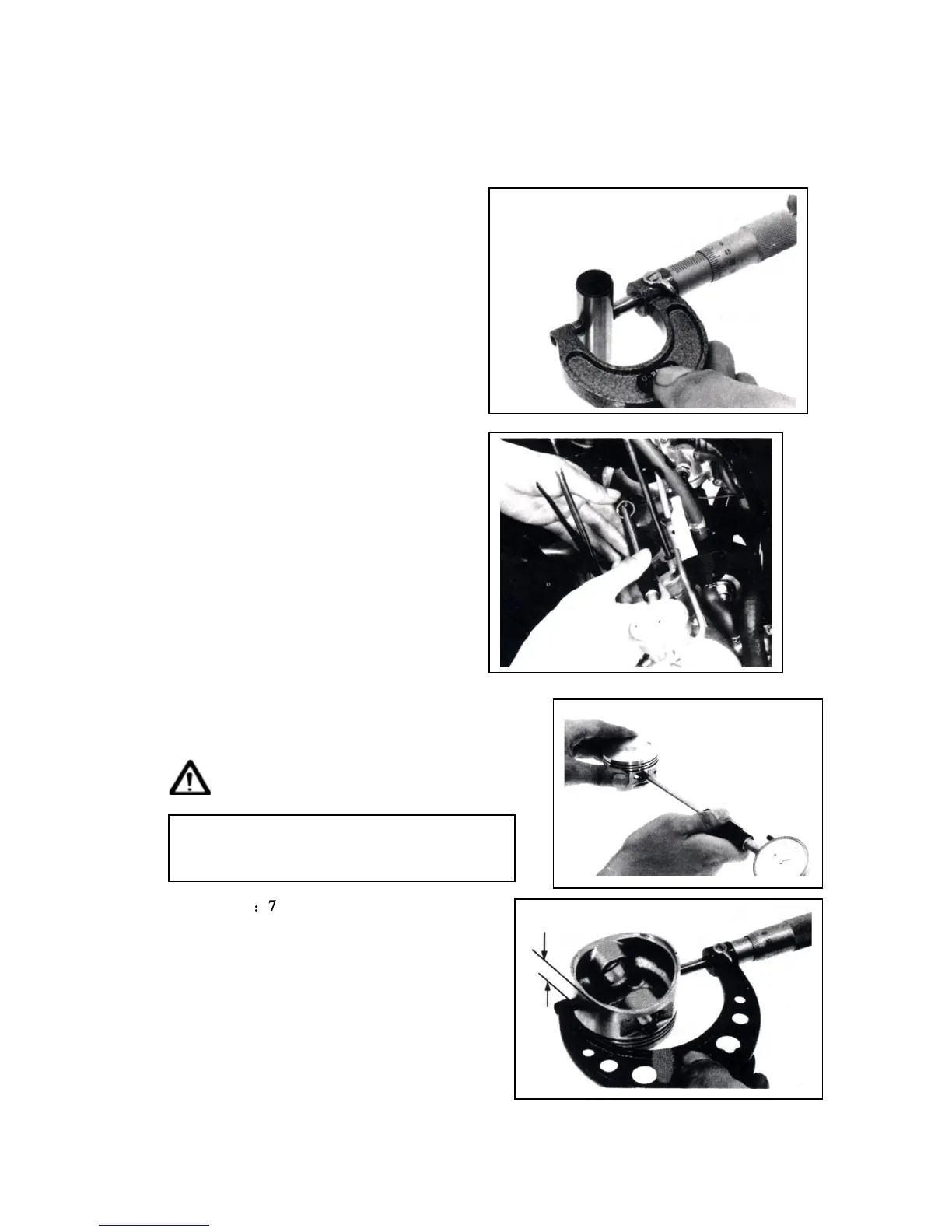

Measure the outer diameter of piston pin.
Service Limit: 17.00 mm
Measure the inner diameter of connecting
rod small end.
Service Limit: 17.02 mm
Measure the inner diameter of piston pin
hole.
Service Limit: 17.02 mm
Calculate clearance between piston pin
and its hole.
Service Limit: 0.02 mm
Measure piston outer diameter.
Caution
Service limit
：
71.00 mm
Compare measured value with service limit to
calculate the clearance between piston and
cylinder.
The measurement position is 10 mm
distance from piston bottom side, and 90°
