Applications Guide E-7
Using this value for the output impedance setting in the battery channel the voltage drop
across the output terminals, as shown in Figure E-7, is 0.360V. This value is in agreement, to
within 3%, with the results obtained with the battery included with the handset.

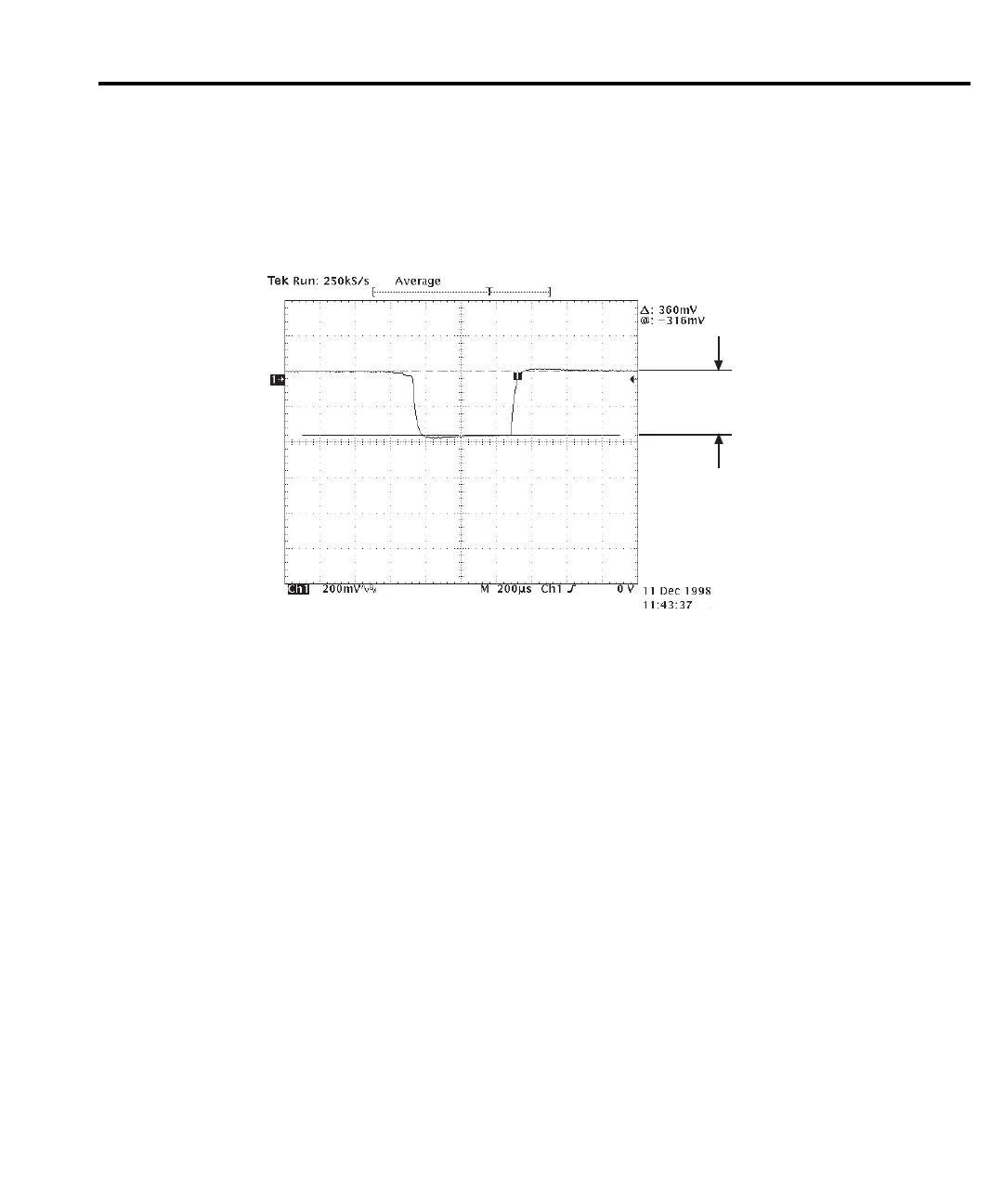

Figure E-7
V
H
– V
L
= 0.360V
Model 2306 voltage drop during the transmit portion of the pulse
NOTE Figure E-7 contains the voltage drop during the transmit portion of the pulse of a
GSM phone with the Model 2306 battery channel, output impedance set to 0.24Ω.
