Keithley 7001 User Manual

Front Panel Operation
4-58

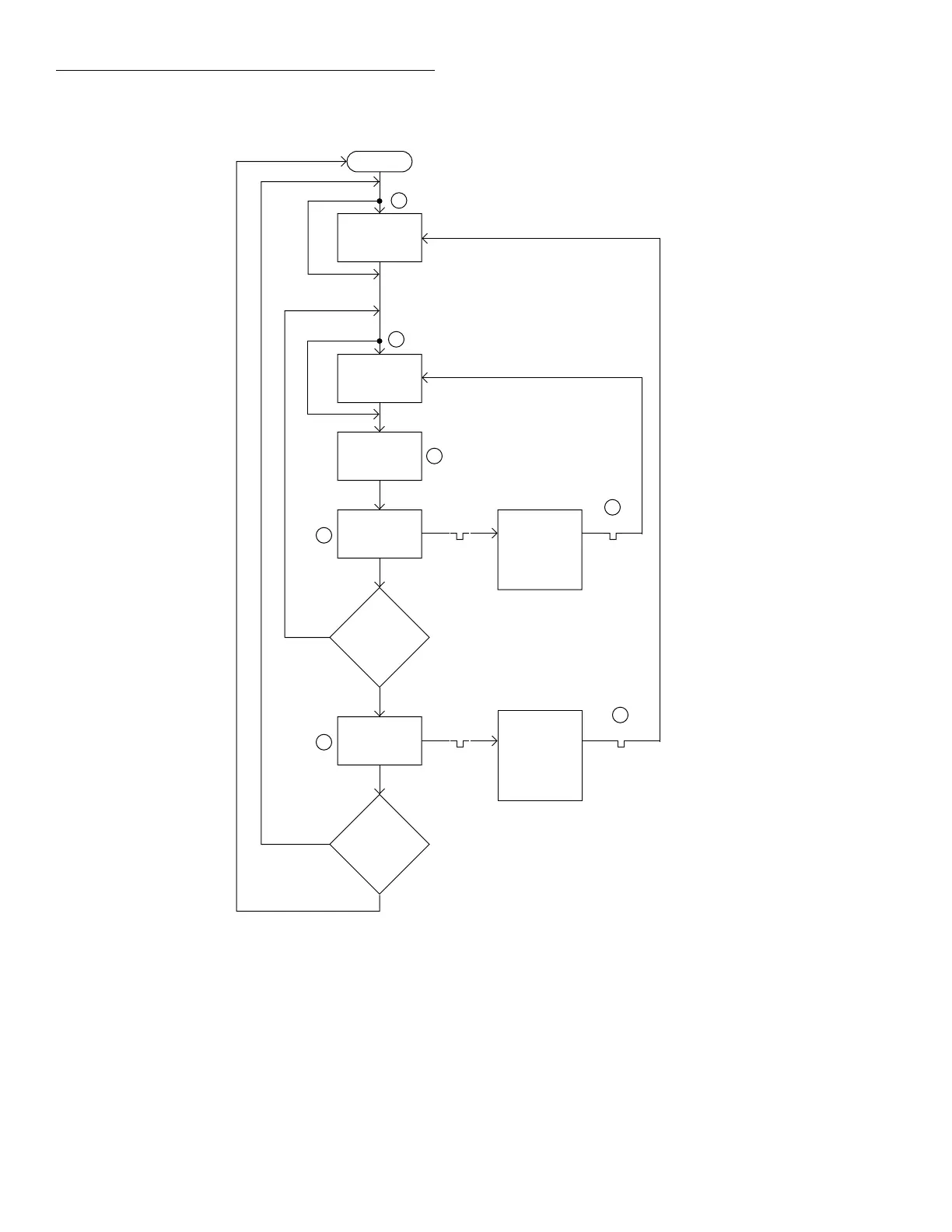

Figure 4-25
Operation model for asynchronous Trigger Link example #2
Idle
Bypass
A
Wait for
Trigger Link
Trigger
Trigger
C
No
Scanned
10
Channels
?
Yes
Scan
Channel
Performed
2
Scans
?
Wait for
Trigger Link
Trigger
D
Output
Trigger
Trigger
B
No
Yes
Bypass
F
Output
Trigger
Trigger 196
to make
Measurement
and Output
Trigger
E
Trigger Trigger
Trigger 230
to source
next voltage
level
and Output
Trigger
G
7001 196
7001 230
7001
Press STEP
196
230
