Front Panel Operation
4-62

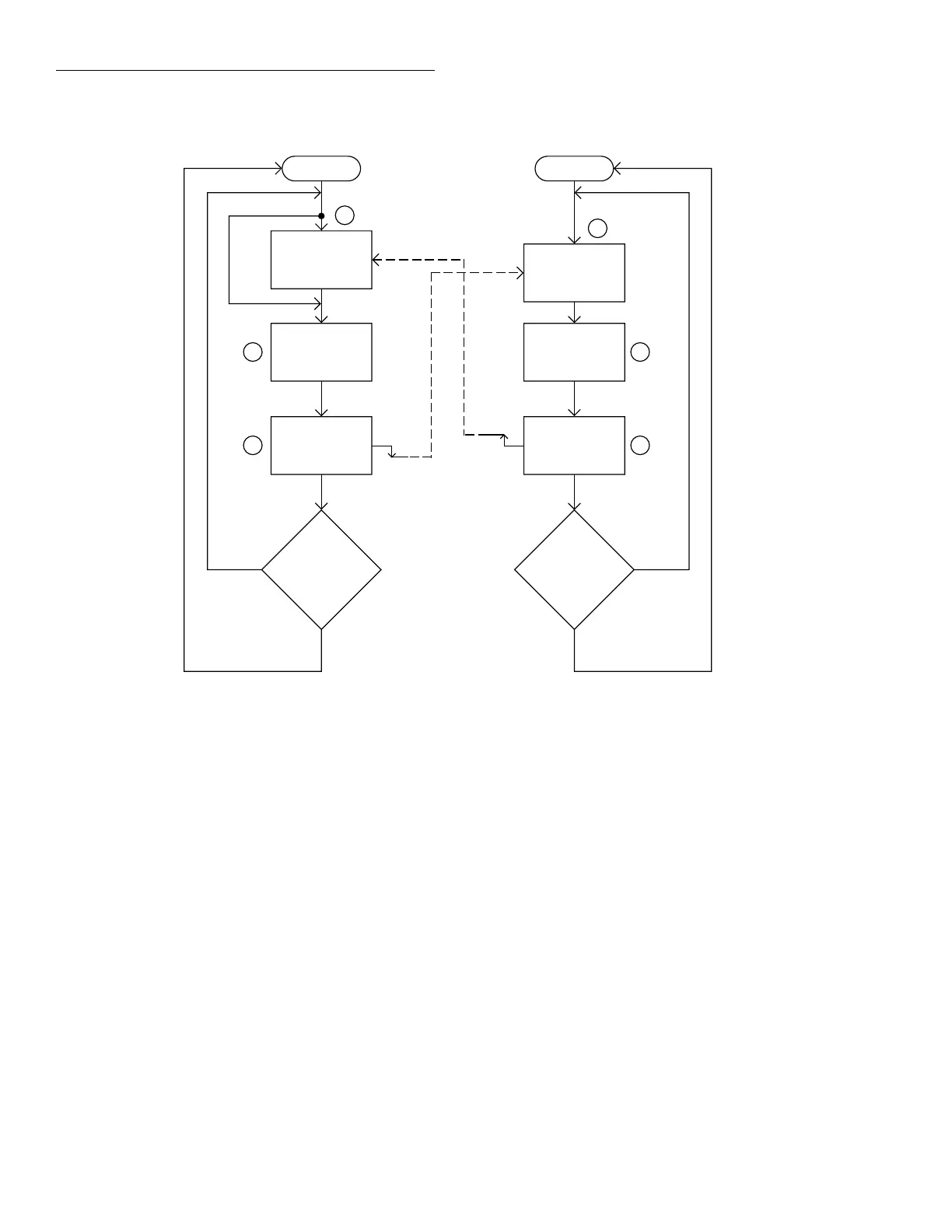

Figure 4-29
Operation model for semi-synchronous Trigger Link example
Idle
Bypass
B
Wait for
Trigger Link
Trigger
Scan
Channel
C
Pull Trigger
Line Low
D
No
Scanned
10
Channels
?
Yes
7001
Make
Measurement
Make
10
Measurements
?
Meter
Step 2. Press STEP Step 1. Press TRIG
Idle
A
Wait for
Trigger Link
Trigger
E
Release
Trigger Line
F
No
Yes
