Card Installation
2-3
Card removal
To remove the card, Þrst unlock it by pulling the ejector
arms outward, then pull the card out of the mainframe.
Remember to handle the card by the edges to avoid
contamination that could degrade performance.

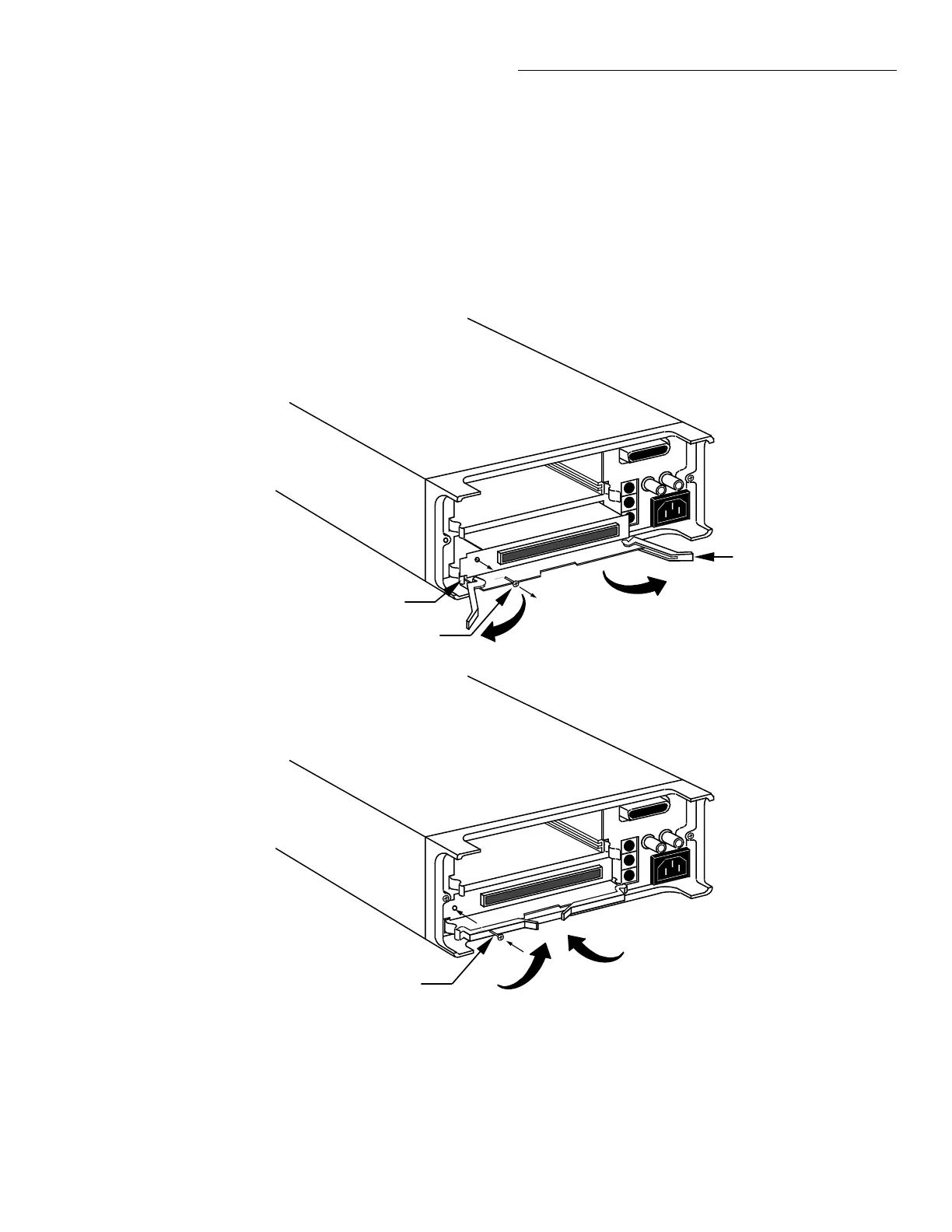

Figure 2-1
Multi-pin card installation
Screw
Screw
Ejector Arms (2)
Ejector Cup
NOTE
The Model 7001 cannot automatically
identify non-701X cards. After the
mainframe is powered up, you must
enter the model number using the
TYPE menu item in the CARD CON-
FIG MENU (see paragraph 3.5.3 in
Getting Started).
