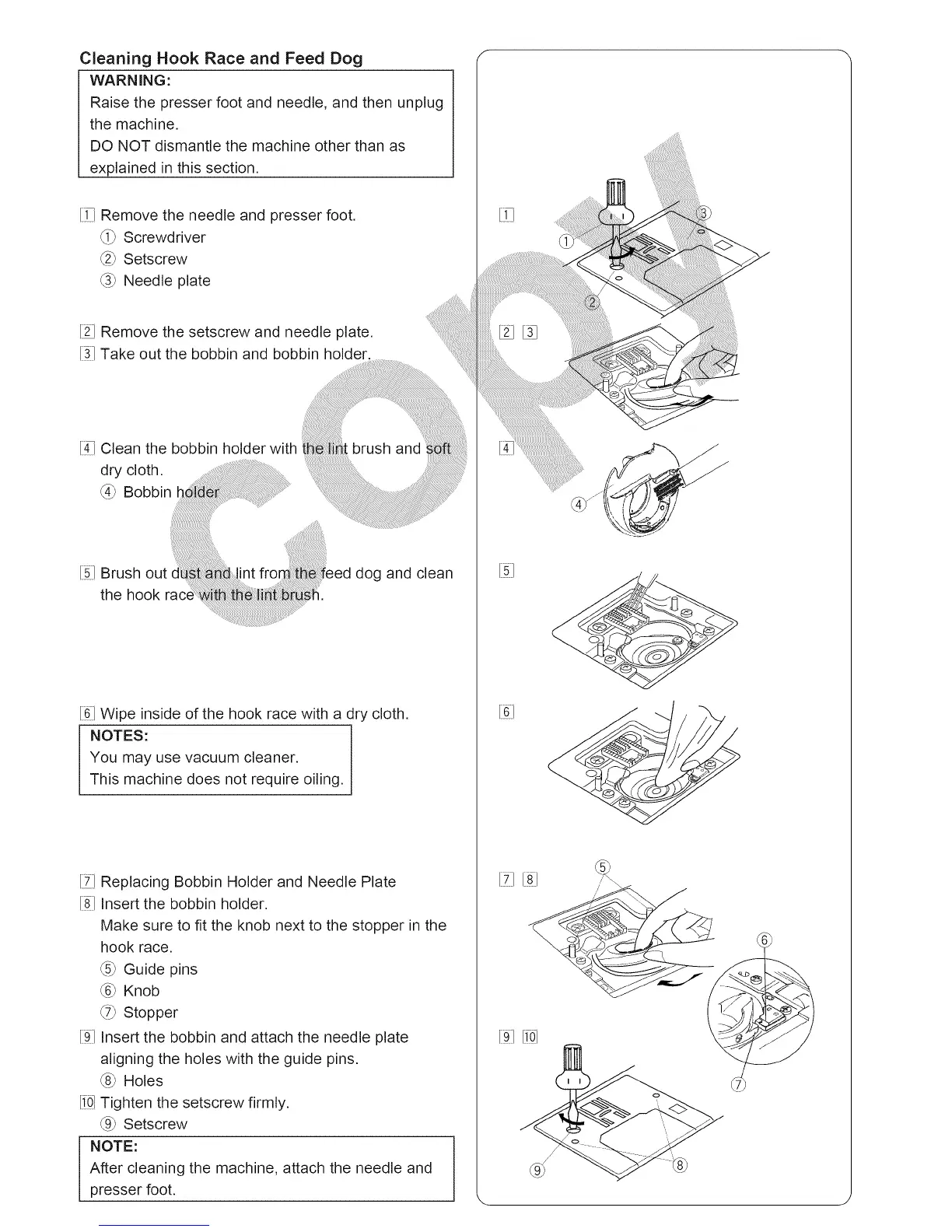

Cleaning Hook Race and Feed Dog
WARNING:
Raise the presser foot and needle, and then unplug
the machine.
DO NOT dismantle the machine other than as
explained in this section.
[i7 Remove the needle and presser foot.
_i_ Screwdriver
_2_Setscrew
_3_Needle plate
[2J Remove the setscrew and needle plate.
[i_i1Take out the bobbin and bobbin holder.
[13Clean the bobbin holder with brush and:
dry cloth.
_4_Bobbin
[::_JBrush out _: _lint from i feed
the hookrac_ i _ti_i_ _.
dog and clean
[1161Wipe inside of the hook race with a dry cloth.
NOTES:
You may use vacuum cleaner.
This machine does not require oiling.
[ZI Replacing Bobbin Holder and Needle Plate
[_] Insert the bobbin holder.
Make sure to fit the knob next to the stopper in the
hook race.
_5_Guide pins
_6_Knob
_7_Stopper
[9] Insert the bobbin and attach the needle plate
aligning the holes with the guide pins.
_8_Holes
[10]Tighten the setscrew firmly.
_9_Setscrew
NOTE:
After cleaning the machine, attach the needle and
presser foot.
