Kenmore 19233 - Computerized Drop-In Bobbin Sewing Machine User Manual

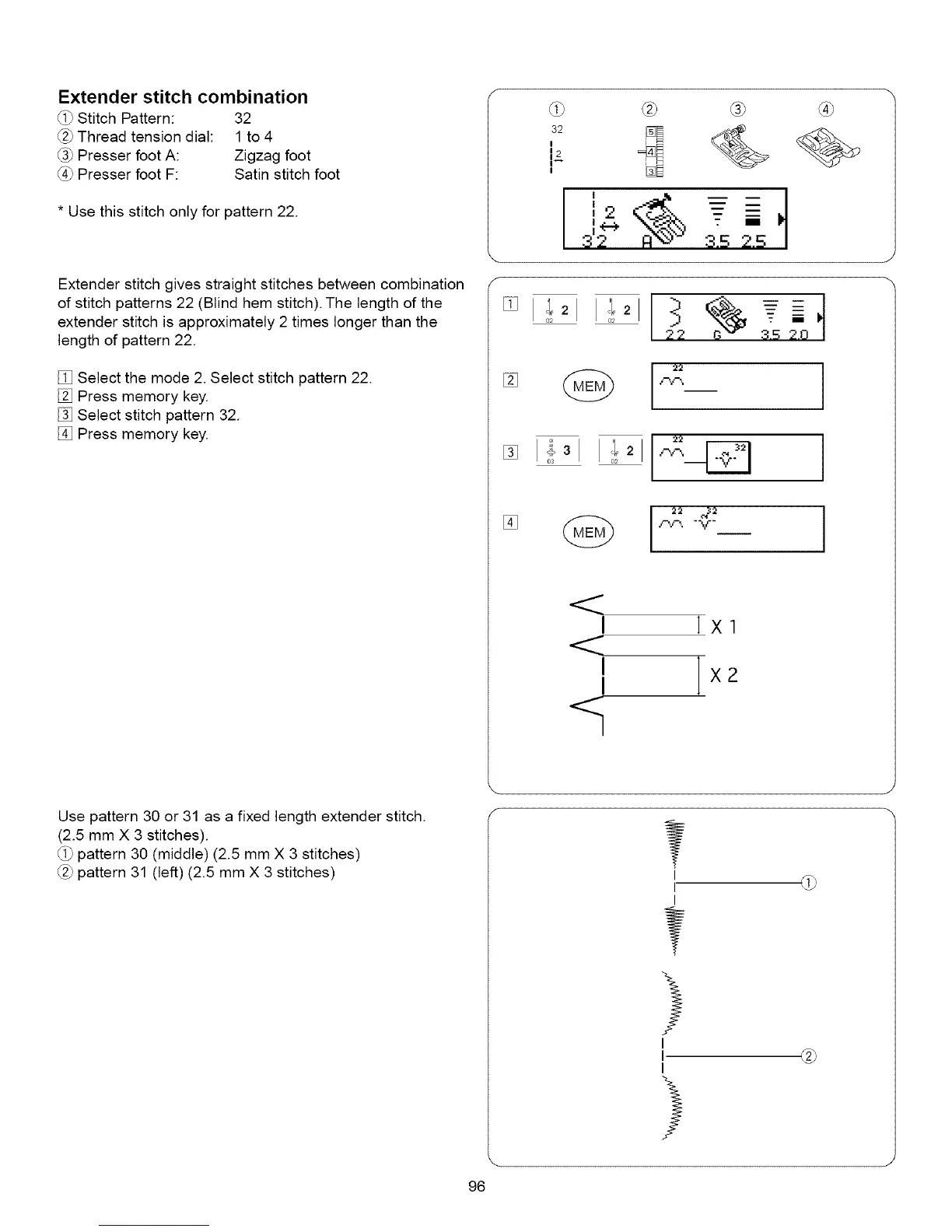

Extender stitch combination
Stitch Pattern: 32
Thread tension dial: 1 to 4
(_ Presser foot A: Zigzag foot
(_ Presser foot F: Satin stitch foot
* Use this stitch only for pattern 22.
Extender stitch gives straight stitches between combination
of stitch patterns 22 (Blind hem stitch). The length of the
extender stitch is approximately 2 times longer than the
length of pattern 22.
Select the mode 2. Select stitch pattern 22.
Press memory key.
Select stitch pattern 32.
Press memory key.
Use pattern 30 or 31 as a fixed length extender stitch.
(2.5 mm X 3 stitches).
pattern 30 (middle) (2.5 mm X 3 stitches)
pattern 31 (left) (2.5 mm X 3 stitches)
96
32
1 !21I
%
%
_ 3:5
22 _2
I Ix1
I
r
I
I
I
I
J
J
