Kenmore 19233 - Computerized Drop-In Bobbin Sewing Machine User Manual

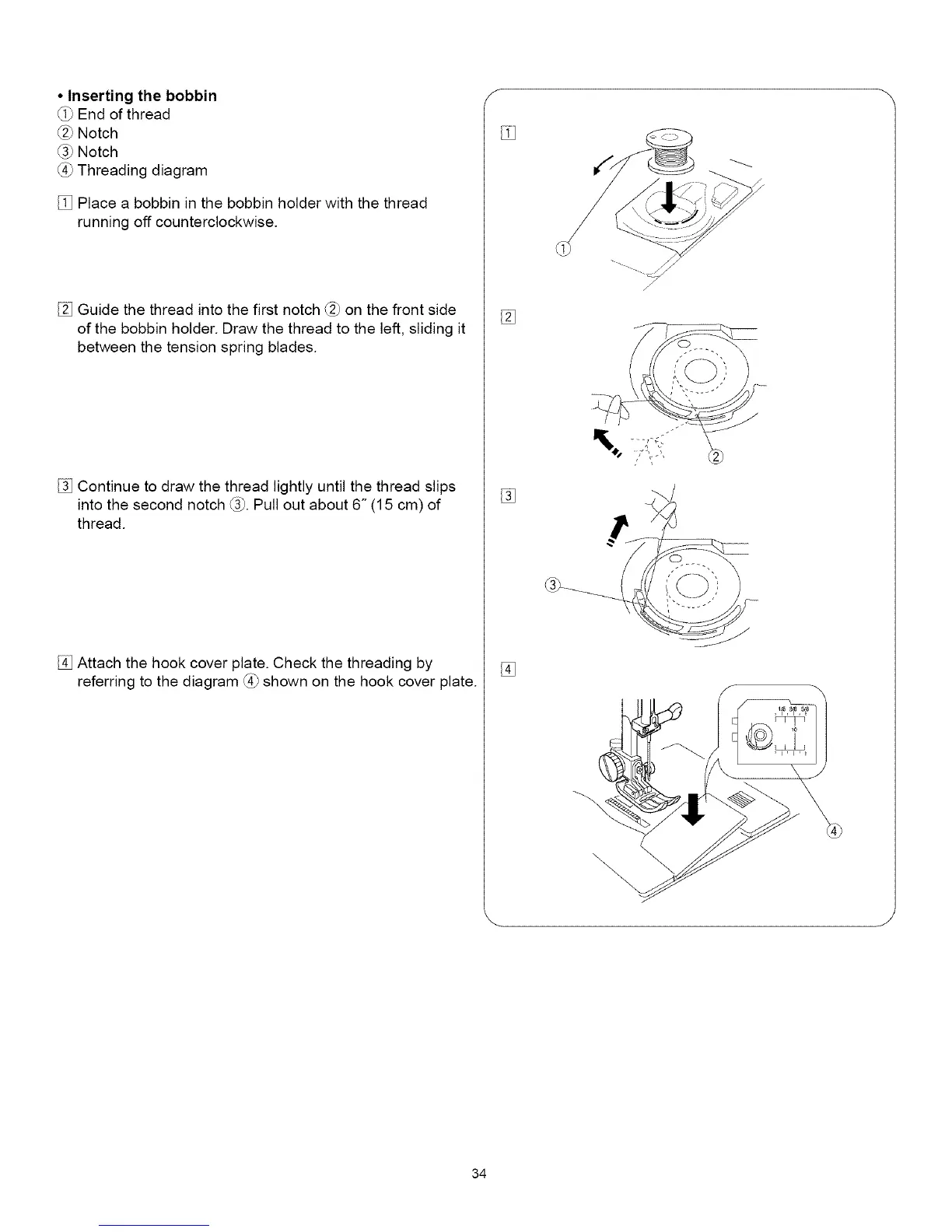

• Inserting the bobbin
End of thread
Notch
Notch
Threading diagram
Place a bobbin in the bobbin holder with the thread
running off counterclockwise.
Guide the thread into the first notch _ on the front side
of the bobbin holder. Draw the thread to the left, sliding it
between the tension spring blades.
Continue to draw the thread lightly until the thread slips
into the second notch _. Pull out about 6" (15 cm) of
thread.
Attach the hook cover plate. Check the threading by
referring to the diagram _ shown on the hook cover plate.
f
%
%
\
\
J
34

Kenmore 19233 - Computerized Drop-In Bobbin Sewing Machine Specifications

General

Brand	Kenmore
Model	19233 - Computerized Drop-In Bobbin Sewing Machine
Category	Sewing Machine
Language	English
