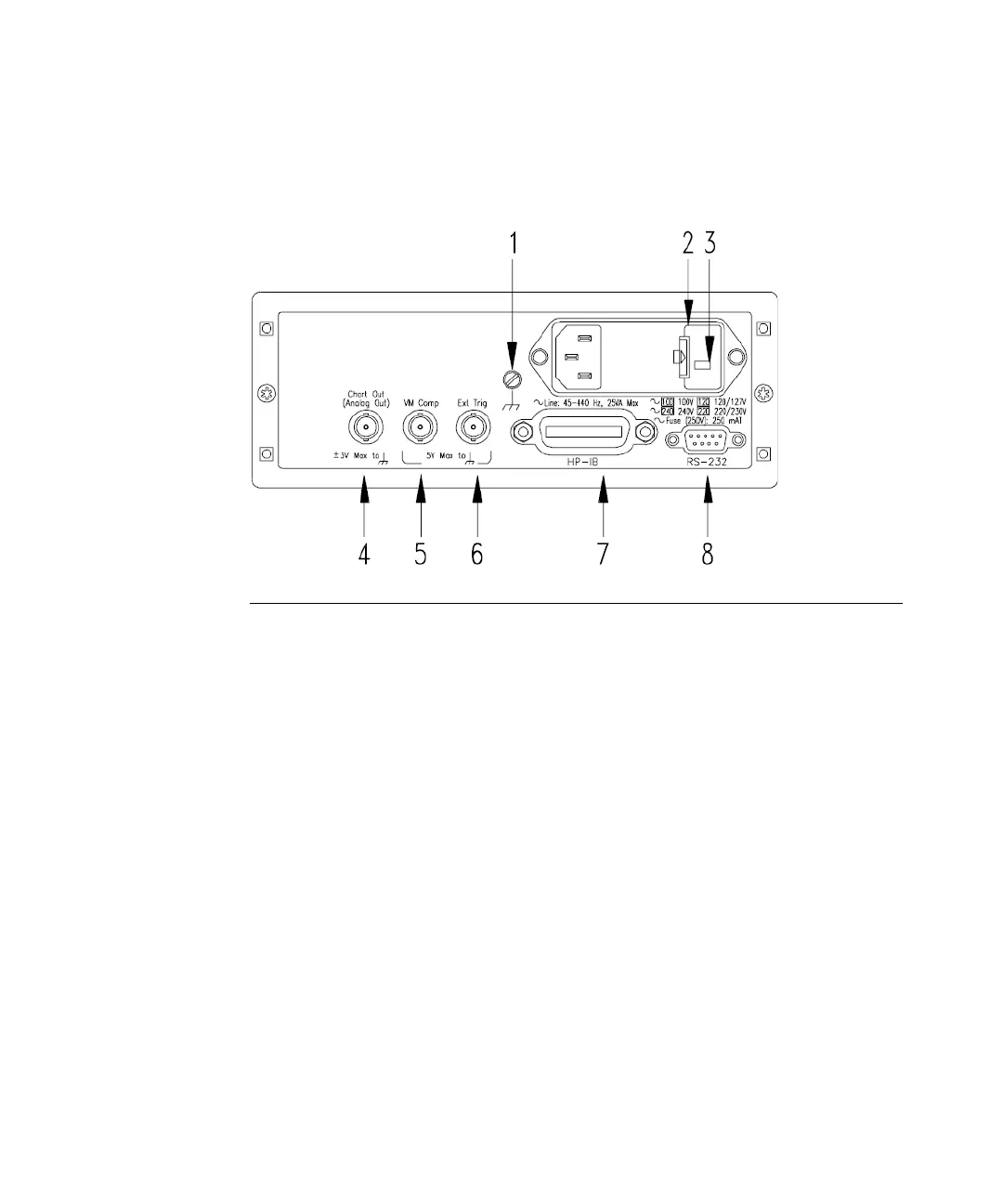

The Rear Panel at a Glance
Use the front-panel Input / Output Menu to:
– Select the GPIB or RS-232 interface
– Set the GPIB bus address
– Set the RS-232 baud rate and parity
1 Chassis ground
2 Power-line fuse-holder assembly
3 Power-line voltage setting
4 Chart recorder output terminal
(Analog out)
5 Voltmeter complete output terminal
6 External trigger input terminal
7 GPIB (IEEE-488) interface
connector
8 RS-232 interface connector
