1 Quick Start
42 Keysight 34420A Service Guide
To Rack Mount the Meter
You can mount the meter in a standard 19-inch rack cabinet using one of three
optional kits available. Instructions and mounting hardware are included with
each rack-mounting kit. Any System II instrument of the same size can be
rack-mounted beside the 34420A meter.
Remove the carrying handle, and the front and rear rubber bumpers, before
rack-mounting the meter.

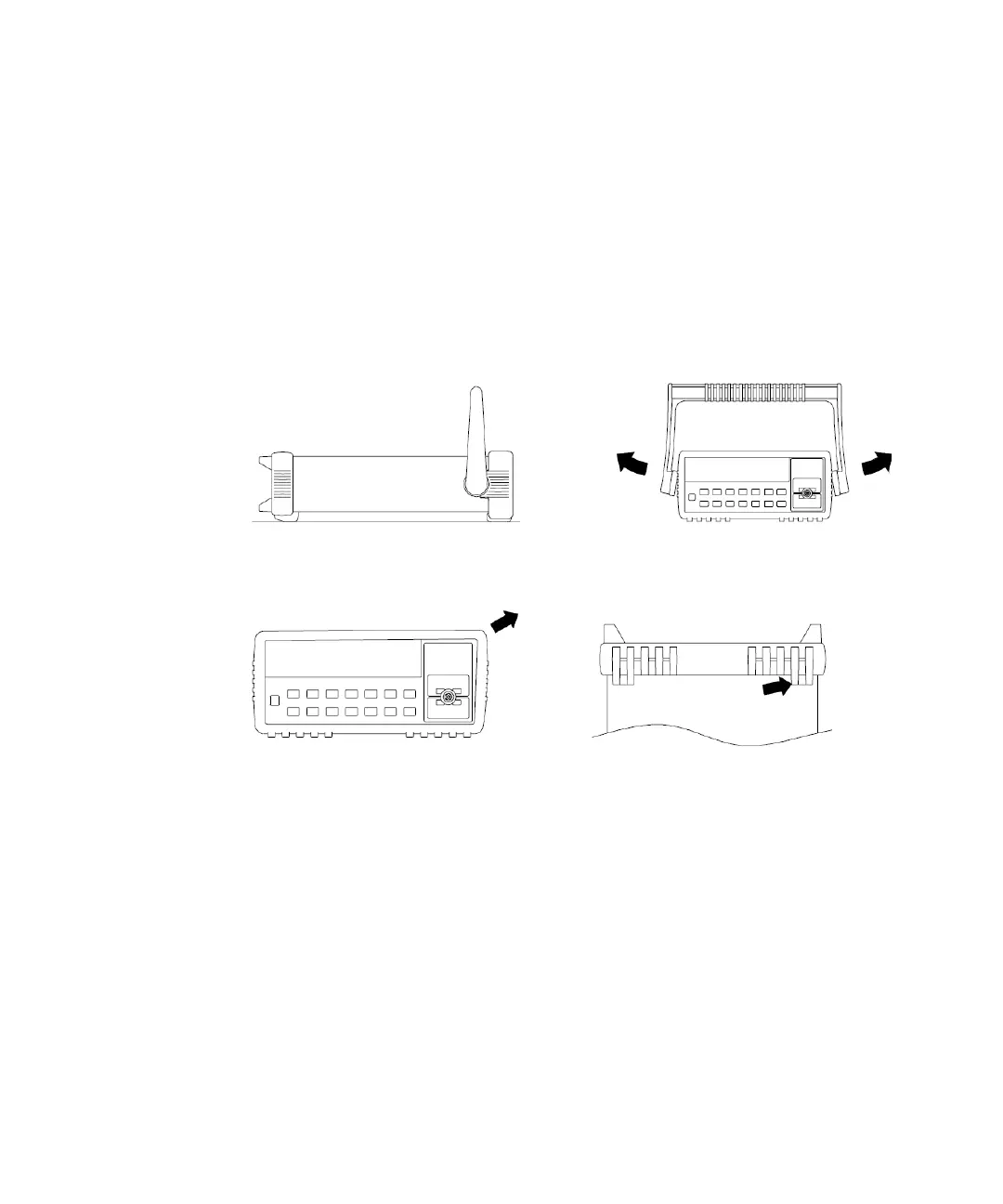

To remove the handle, rotate it to the vertical position and pull the ends
outward.
To remove the rubber bumper, stretch a corner and then slide it off.
