Keysight N5221A/22A Service Guide 3-13
Tests and Adjustments
Preliminary Checks
4. If shorts and opens are not connected to all ports, you will be prompted to
connect them as they are needed.
5. The result of the operator’s check will be shown as a PASS or FAIL next to
each test (refer to Figure 3-3). The PNA Operator’s Check dialog box will
look different for different PNA model numbers and installed options.
Some of the tests are performed only if the appropriate options are
installed in the PNA.

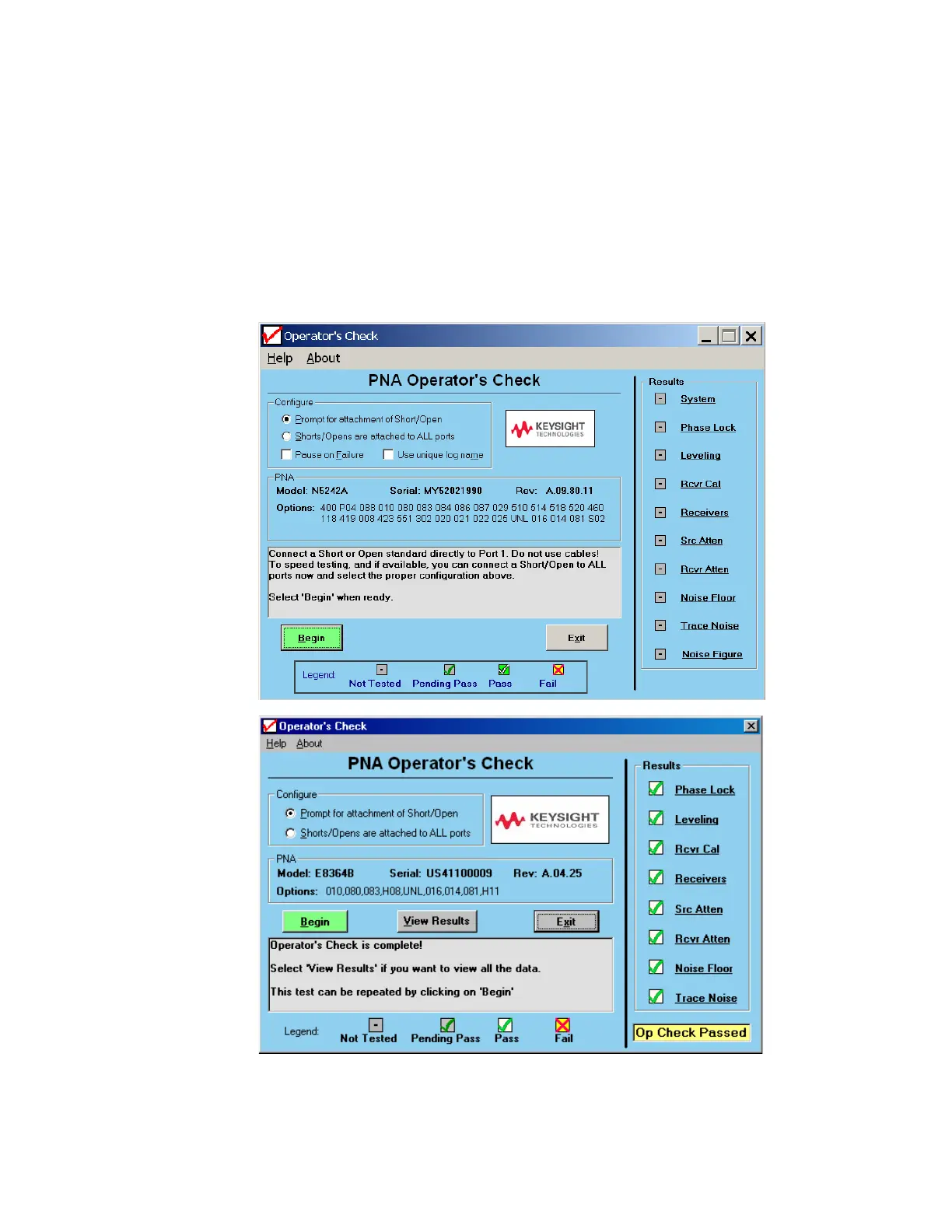

Figure 3-3 Operator’s Check Dialog Box
