2-6 Installation and Service Guide N5250-90001
System Description
N5260A Millimeter Head Controller
PNA Series Microwave Network Analyzer System
N5250A
N5
260A Millimeter Head Controller
The N5260A millimeter head controller provides the test interface between the millimeter-wave
test head modules and the E8361C H11 PNA series network analyzer.
The millimeter head controller, when used in conjunction with the millimeter-wave test head
modules and the PNA, provides all of the feature and functions of a full S-Parameter test set.
The millimeter head controller supplies RF and LO signals to the millimeter-wave test head
modules and returns the down converted reference and test IF signals to the PNA for process
and display. The N5260A millimeter head controller also supplies the +12 volt bias to each
millimeter-wave head module.
The front panel of the N5260A millimeter head controller is illustrated below.
For additional information, see the N5260A Operation and Service Guide. If a printed version of
the N5260A manual is not available, refer to “Printing Copies of Documentation from the Web” on
page ii of this manual.

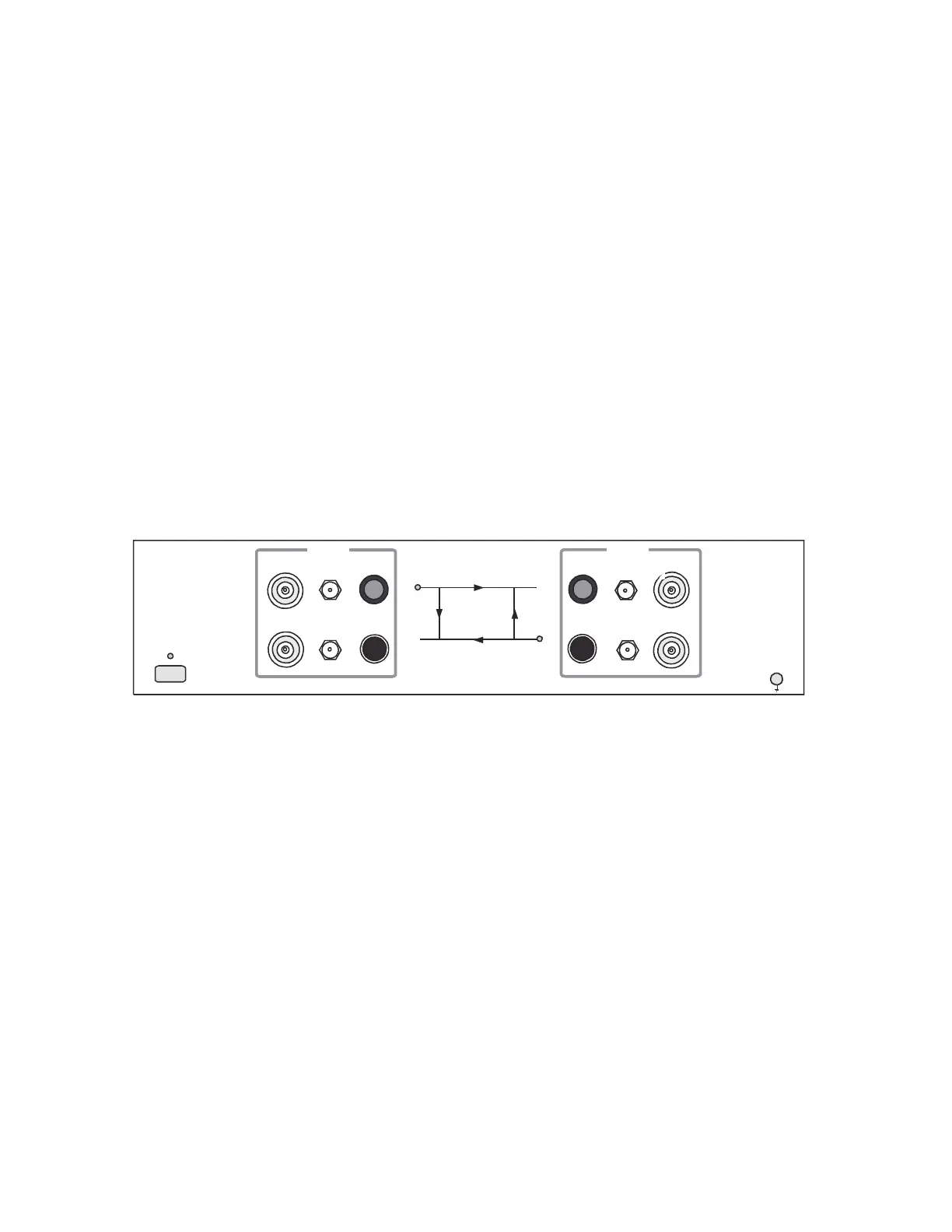

Figure 2-3 N5260A Millime
ter Head Controller Front Panel
0
1
N5260A
Millimeter-Head Controller
LINE
Port 1
Port 1
Port 2
RF OUT
RF OUT
LO OUT
LO OUT BIAS
BIAS
2 AMP FUSE
2 AMP FUSE
R1 IF
R2 IF
A IF
B IF
S21
S12
S22
S11
n5250_001_309
To Next Page
