6-10 Installation and Service Guide N5250-90001
Performance Tests and Checks
System Performance Verification
PNA Series Microwave Network Analyzer System
N5250A

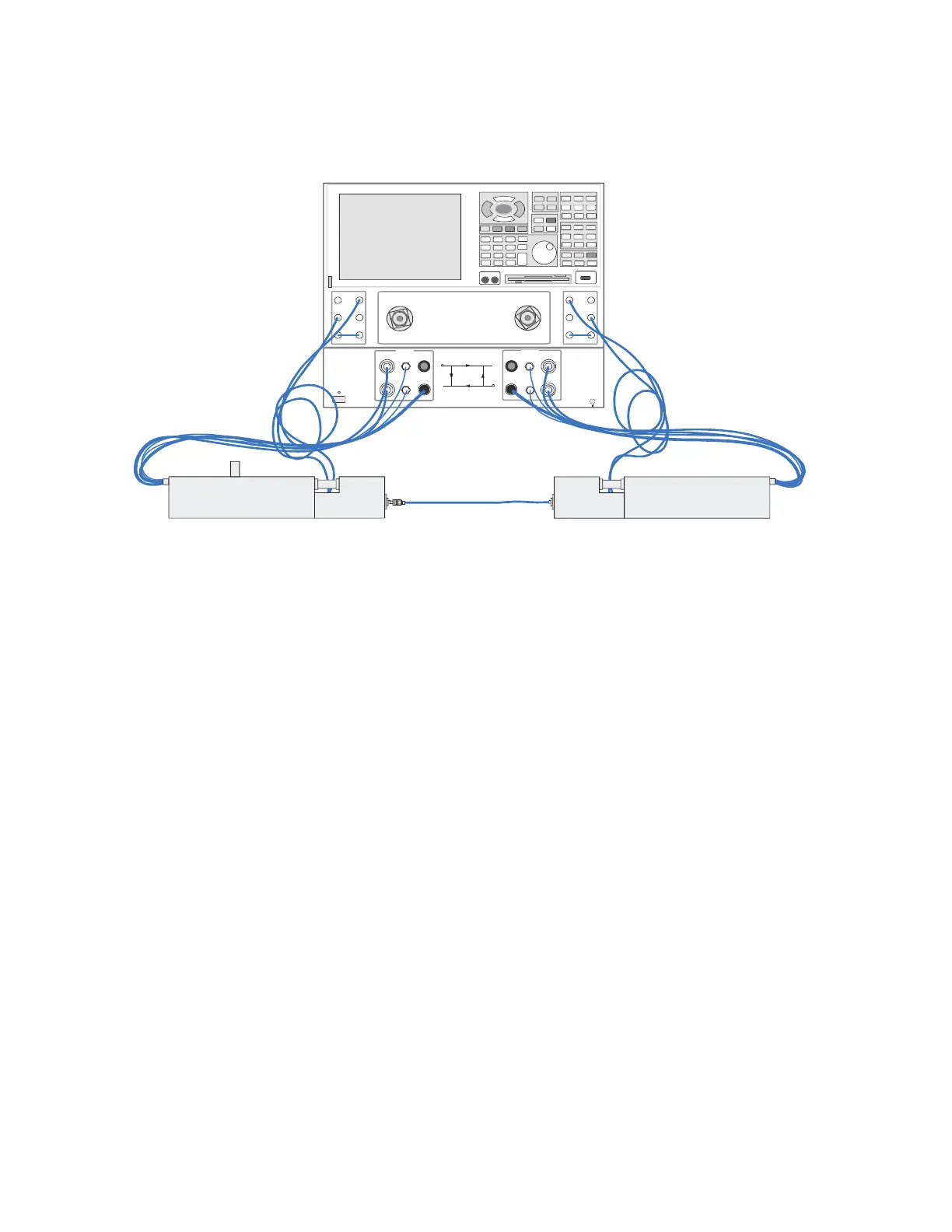

Figure 6-4 System Verification Device Connections
Verification Results Files
When System Verification is configured as recommended, the process produces five
files - one
text file and four .png files. The text file contains model numbers and serial numbers of the PNA
and 85059A kit, along with tabular lists of all results. The other files are screen captures of the
magnitude and phase traces for each verification device. All file names contain the date and
time of the system verification.
Refer to the example screen captures in Figure 6-5, Figure 6-6, Figure 6-7, and Figure 6-8. The
windows are labeled 1, 2, 3, and 4. Window 1 is S
11
, window 2 is S
21
, window 3 is S
12
, and trace
4 is S
22
. Two traces are shown for each measurement - a black trace and a colored trace. The
black traces represent the factory measured data for the verification devices. The colored traces
represent the actual measured data from the calibrated system.
Port 2
RCVR
B IN
CPLR
ARM
SOURCE
OUT
CPLR
THRU
SOURCE
OUT
RCVR
R2 IN
Reference 1
Port 1
RCVR
A IN
CPL R
ARM
SOURCE
OUT
CPLR
THRU
SOURCE
OUT
RCVR
R1 IN
E8361A Network Analyzer 45 MHz to 67 GHz
0
1
N5260A
Millimeter Head Controller
LINE
Port 1
Port 1
Port 2
Port 2
RF O UT
RF OUT
LO OUT
LO OUT BIAS
BIAS
2 AMP FU SE
2 AMP FUSE
R1 IF
R2 IF
A IF
B IF
Device
Verification
E8361A PNA Series
Network Analyzer with
Options 014, 080, 081,
UNL, and H11
N5260A
Millimeter-Head
Controller
Left Test Head Right Test Head
n5250_001_604
11500-60001
Cable assembly 1 mm (f-f)
To Next Page
