Installation and Service Guide N5250-90001 6-7
Performance Tests and Checks
System Performance Verification
PNA Series Microwave Network Analyzer System
N5250A
Verification Procedure
1. Insert the USB memory stick from the 85059A kit into the PNA.
2. Click Utility > System > Service > Syste
m Verification. The System Verification dialog box is
displayed; refer to Figure 6-3.

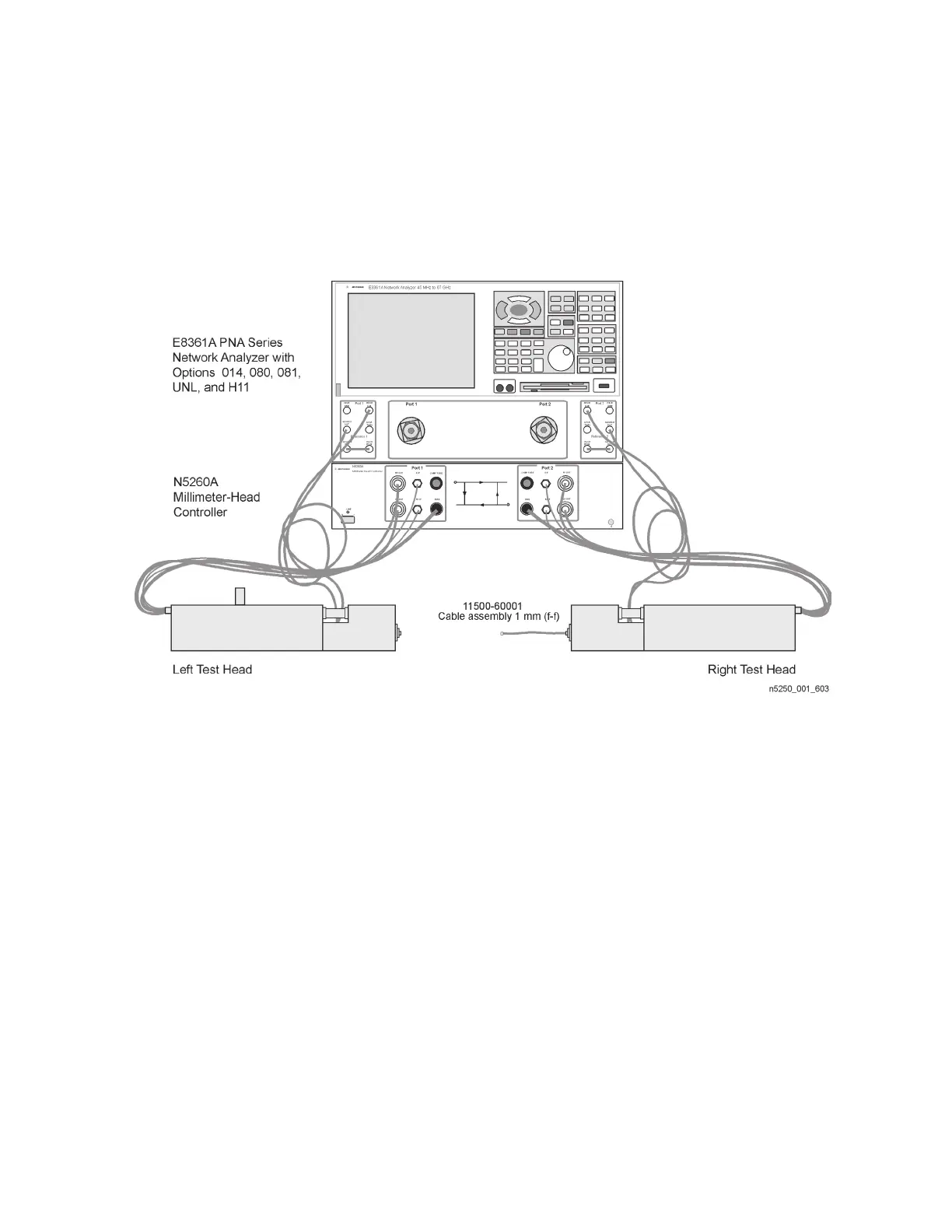

Figure 6-2 System Verification Connections
