6-8 Installation and Service Guide N5250-90001
Performance Tests and Checks
System Performance Verification
PNA Series Microwave Network Analyzer System
N5250A

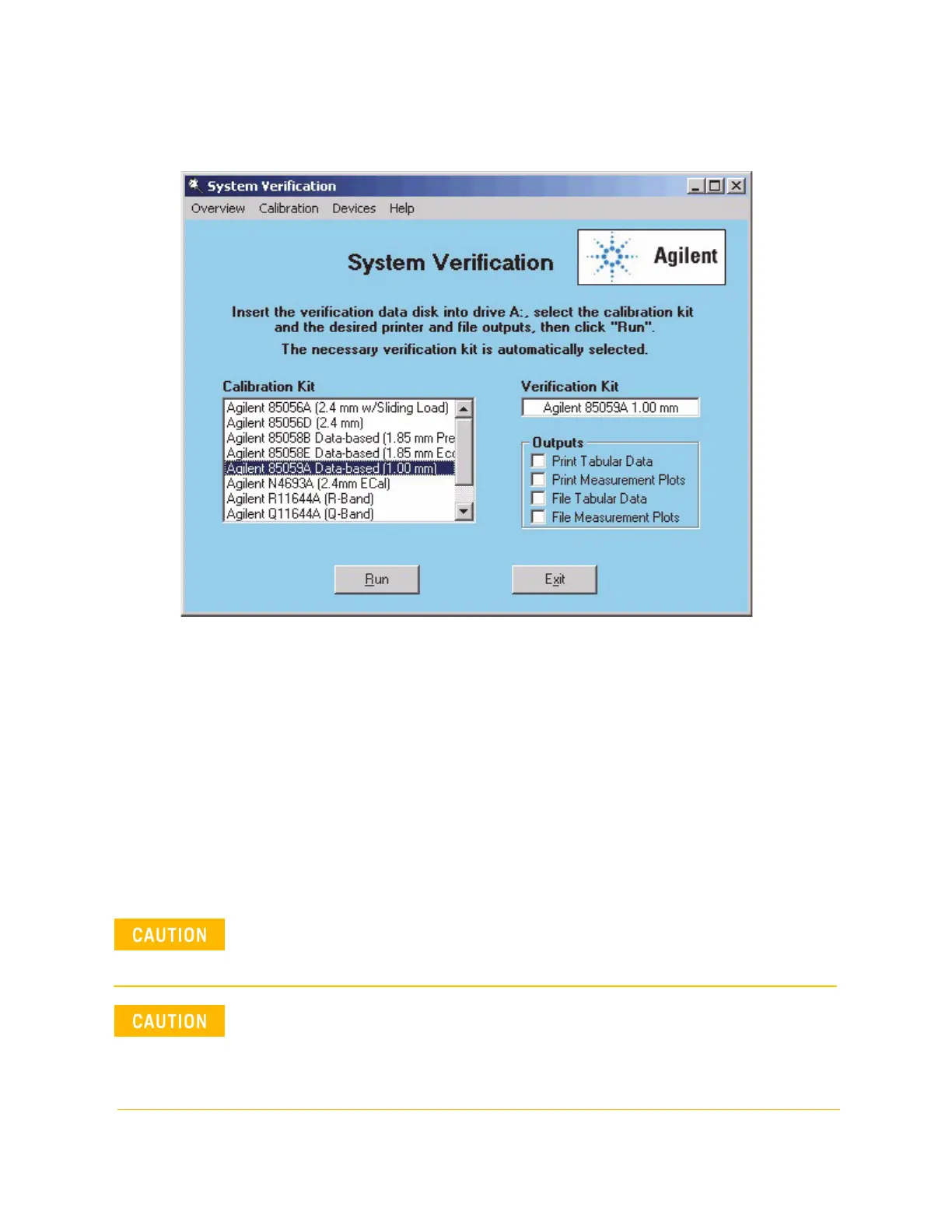

Figure 6-3. System Verification Dialog Box
3. In the Calibration Kit box, select the “Agilent 85059A Data-based (1.00 mm)” calibration kit
by clicking on it. The corresponding verification kit to use is selected for you and displayed
in the Verification Kit box. Refer to Figure 6-3.
4. Under Outputs, the recommended selections are “File Tabular Data” and “File Graphs.”
Other selections may be made.
5. Click Run.
6. Enter the serial number for the 85059A kit and click Continue.
7. Install the 1.0 mm female to female cable (8.8 cm, Keysight part number 11500-60001)
onto the right test head (port 2) prior to calibration as shown in Figure 6-2. This cable is part
of the 85059A 1.0 mm Precision Calibration and Verification Kit and is considered to be a
test port cable.
Do not remove this test port cable once the Calib
ration/Verification process has
begun. If the test port cable becomes loose or is removed during the calibration/
verification process, the calibration is invalid.
Do not pull on the connectors on the ends of the test port cable—this will damage
the cable. Avoid damaging the cable once it is connected to Port 2 when making
the thru connection between the two test heads. Thi
s is best done by placing the
two test heads on a smooth surface and gently sliding the right test head (Port 2)
towards the left test head (Port 1).
