Keysight Technologies N5250C PNA Series User Manual

Installation and Service Guide N5250-90001 3-19
PNA Series Microwave Network Analyzer System System Installation
N5250A Disconnecting the Combiner Assembly From the mm-Wave Module
New Design

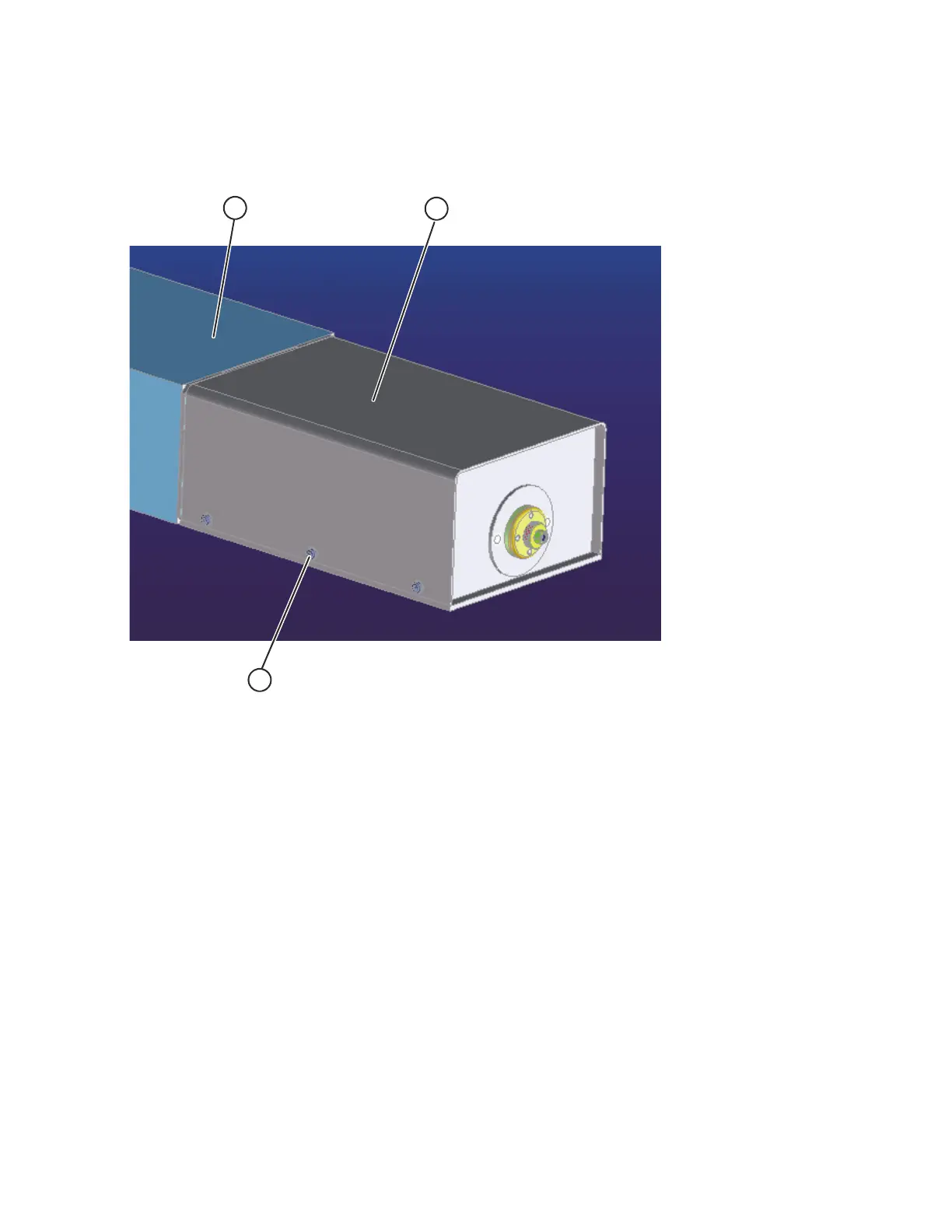

Figure 3-10 New Design Combiner Assembly and mm-Wave Module: View 1
Refer to Figure 3-10. To use the mm-wave modules without the combiner asse
mbly, disconnect
the combiner assembly (item 2) from the mm-wave (waveguide) module (item 1) using this
procedure:
1. Remove the three screws (item 3).
1
2
3
(3 places)
N5230_013_316
