Keysight Technologies N5250C PNA Series

3-20 Installation and Service Guide N5250-90001
System Installation PNA Series Microwave Network Analyzer System
Disconnecting the Combiner Assembly From the mm-Wave Module N5250A

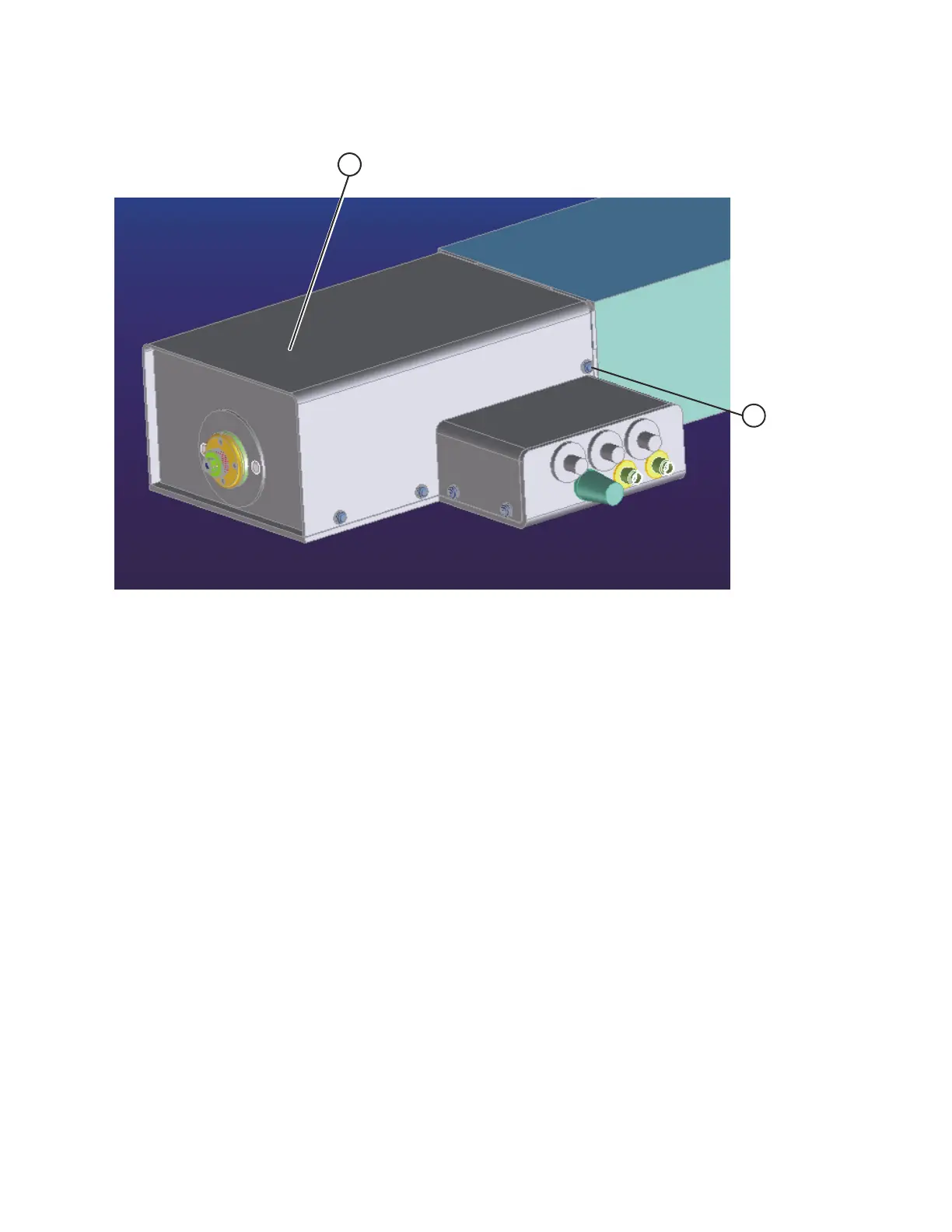

Figure 3-11 New Design Combine
r Assembly and mm-Wave Module: View 2
2. Remove the 3 screws (item 2).
3. Remo
ve the large cover (item 1)
1
2
(3 places)
N5230_013_317
